Used PAXSON 48" x .115" x 30,000Lb Paxson Loop Slitting Line | Slitting Lines

Make: Paxson - Wean
Material Thickness: 0.028" - 0.115"
Material Width: 12" - 48"
Coil Weight: 30,000Lb
Coil ID: 20"
Coil OD: 72"
Direction: Left to Right

Consisting of the following:

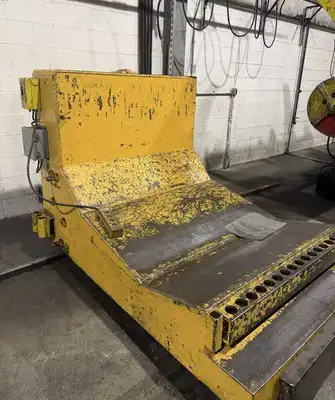

-Entry Coil Car:
Above Floor "L" Type
Self-Contained Hydraulics
Hand Pendant Control

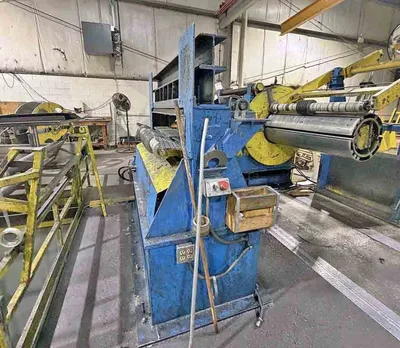

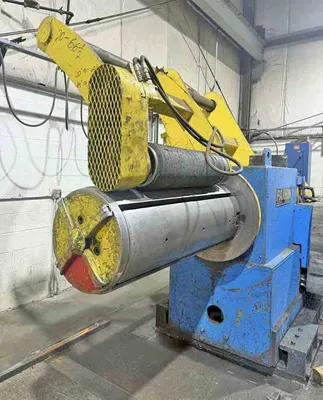

-Uncoiler:
Hydraulic Expansion
Threading Drive
Sliding Base
Powered Holddown Roll
Wichita Water Cooled Brake

-Peeler Table:

-Entry Crop Shear: Royalton
Hydraulic Cylinder Actuated

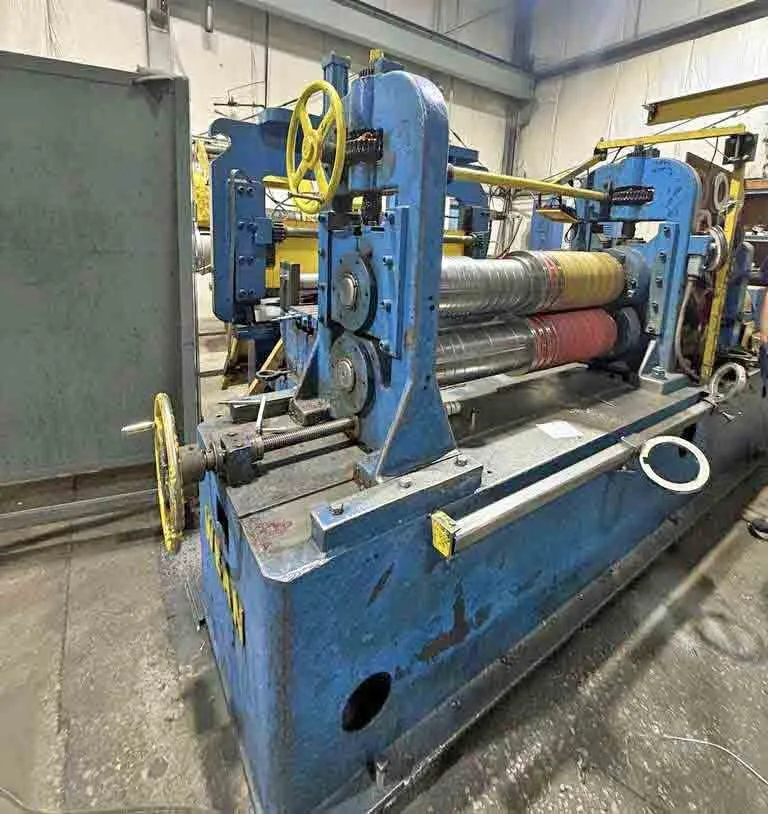

-Slitter Head:
6" Diameter Arbors
Entry Passline Roll
Entry Side Guides
Parallel Arbor Adjustment
50 HP DC Motor Drive
Right Angle Reducer

-Looping Pit:

-Scrap Winder:
Hydraulic Motor Driven
Manual Scrap Ball Removal
Level Wind

-Tension Stand:
Drag Board Type
Entry Separator Tooling Bar
Exit Passline Roll

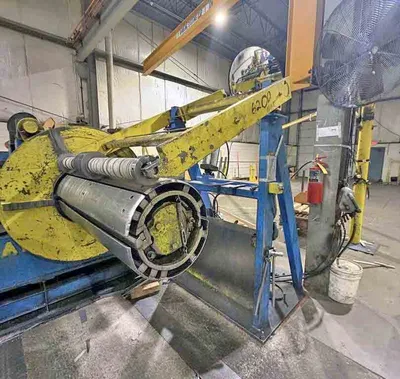

-Recoiler:
20" Dia. Drum with 24" Pads
Manual Clamp & Expansion
Hydraulic Pushoff
50 HP DC Motor

-Free Standing Overarm Separator:

-2 Arm Turnstile:
Powered Rotation
C-Hook Arms

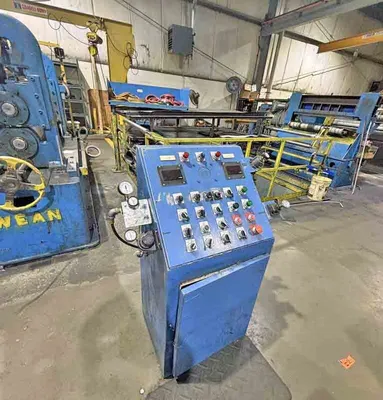

-Main Operators Control Panel:

-Spare 50 HP DC Motor

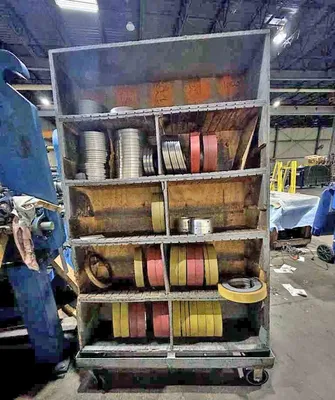

-Slitter Tooling Included
