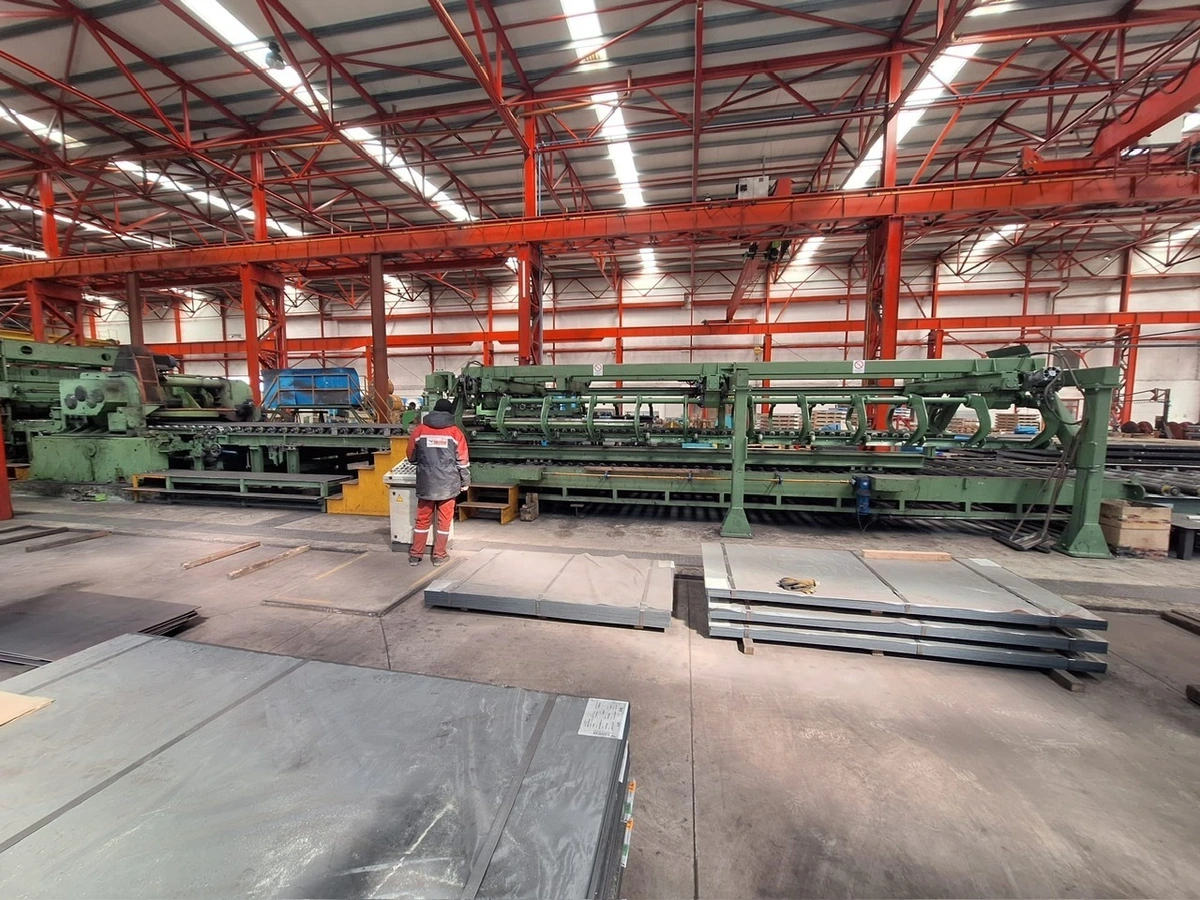

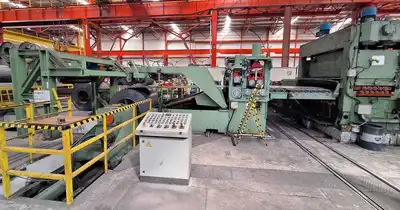

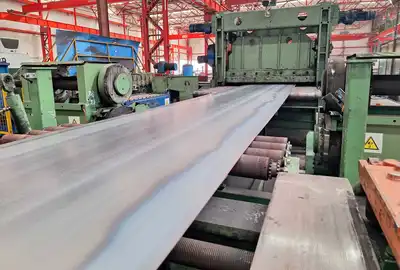

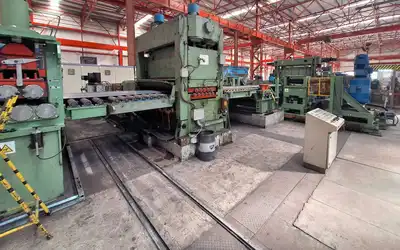

Used Rizzato 2050mm x 12mm x 30,000kg CTL Line | Cut to length Lines

Make: Rizzato (Italy)
Material Width: 1000mm - 2050mm
Material Thickness: 1.5mm - 12mm
Coil Weight: 30-ton
Coil OD: 2,200mm
Coil ID: 480mm - 850mm
Sheet Length: 1000mm - 8000mm
Line Speed: 30 m/min
Power: 531Kw

V-Type Hydraulic Entry Coil Car
Double Mandrel Uncoiler
Hydraulic Peeling Table
Driven Entry Pinch Rolls

Coil Straightening Machine
Five (5) Work Rolls
3/2 Roll Configuration
Work Rolls: 120mm
Motor: 110Kw

Corrective Leveler
Number of Work Rolls: 17
9/8 Work Rolls Configuration
Work Rolls Diameter: 110mm
Motor: 180Kw

Corrective Leveler
Number of Work Rolls: 11
6/5 Work Rolls Configuration
Work Rolls Diameter: 55mm
Motor: 110Kw

Flying Shear
Driven Exit Belt Conveyor

Edge Trimming Head
Adjustable Edge Width
Scrap Chopper

Stacking Section
Drop Type Stacker
Driven Stacking and Exit Conveyors

Electircs, Hydraulics, Controls, Spare Parts
