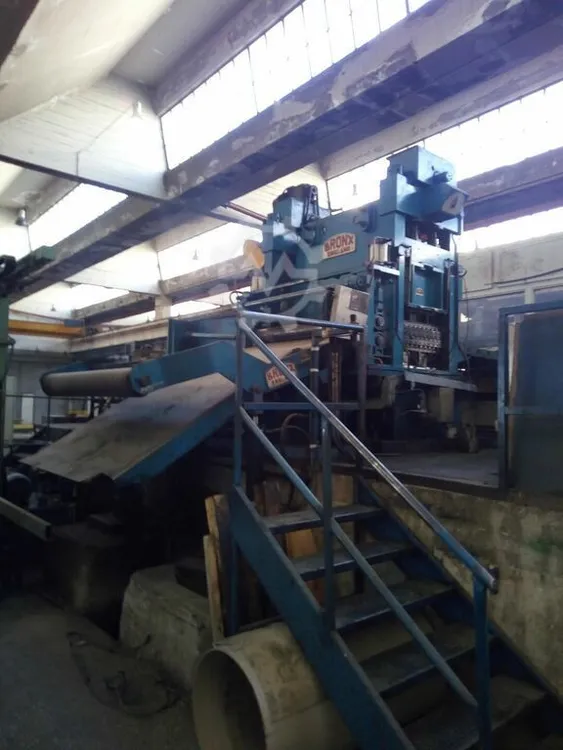

1500mm x 5mm x 15 ton Bronx Cut to Length Line
Make: Bronx
Material: CR, HR, P&O, Galvanized
Material Width: 400mm - 1500mm
Material Thickness: 1mm - 5mm
Coil Weight: 15 ton
Coil ID: 508/610/700mm
Coil OD: 2000mm
Working Speed: 45 meters per minute
Sheet Length: 500mm - 4000mm
Direction: Left to Right
Entry Coil Car
L-Type Floor Standing Design
Powered Lift & Traverse
Mandrel Uncoiler
Powered Expansion
Powered Hold-Down Roll
Feed-Up Motor
Sliding Base
Hydraulic Peeler
4-Hi Precision Leveler
Number of Work Rolls: 19
Work Roll Diameter: 63mm
Adjustable Work Rolls
Up & Down Back Up Flights
DC Motor Drive & Gear Box
Exit Belt Conveyor
Flying Shear
Driven Traverse Base
Pneumatic Clutch & Brake
Driven Belt Conveyor
Drop Type Stacker
Driven Exit Conveyors
Driven End Conveyor with Scale
Electrics, Hydraulics, Controls
