72″ x .075″ x 40,000Lb Rowe – Herr Voss CTL Line

Make: Rowe / Herr Voss
Material Width: 12" - 72"
Material Thickness: .020" - .075"
Weight Capacity: 40,000Lb
Coil ID: 20"
Coil OD: 72"
Speed: 160 feet per minute
Sheet Max Length :12'
Direction: R-L

Entry Coil Car
Floor Standing V-Type Design
Powered Lift & Traverse

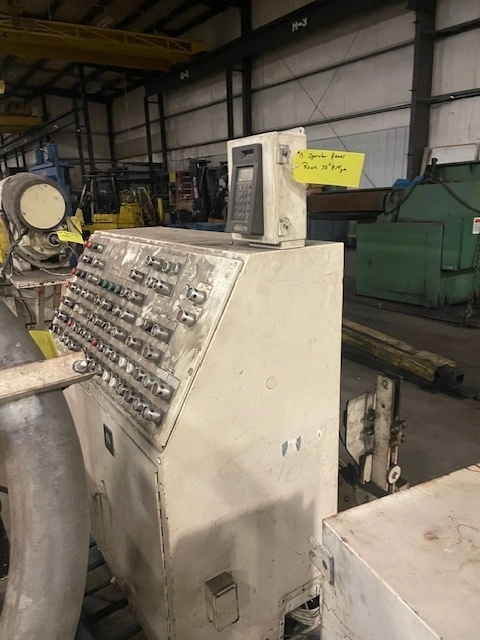

Control Panel

Mandrel Uncoiler
4-Leaf Mandrel
Powered Hold-Down Roll
Motorized Expansion
Feed-Up Motor
Sliding Base

Coil Straightener
Driven Pinch Rolls
Six (6) Adjustable Work Rolls
DC Motor Drive

Herr-Voss 6-Hi Precision Leveler
Model: RH/84-1.500-19-9-6Hi
Work Roll Width: 84"
Work Roll Diameter :1.500"
Number of Work Rolls: 19
Number of Back Up Flights: 9
Powered Work Rolls Adjustment
75HP DC Motor Drive
Electrical Controls

Rotary Edge Trimmers
Mechanical Scrap Chopper
Scrap Conveyor

Feed-up Unit

Wysong Mechanical Shear
High Speed: 300 SPM
Bow Tie Blade Design
AC Motor Drive
Air Clutch & Brake

Run-Out Belt Conveyor
Positive Stop Measuring Unit

Sheet Stacker
Roller Arm Hydraulic Flipper Arms
Motorized Width Adjustment
Powered Lift Table
Driven Conveyor Rolls
Powered Run-Out Conveyor

Electrics, Hydraulics, Controls, Spare Parts
