72″ x .375″ x 50,000Lb Paxson Loop Slitting Line

Make: Paxson
Material Width: 12" - 72"
Weight Capacity: 50,000Lb
Thickness: .050" - .375"
Coil ID: 20" - 30"
Coil OD: 72"
Line Speed: 850 feet per minute
Direction: Right to Left

Entry L-Type Coil Car
Floor Standing Design
Hydraulic Lift & Traverse
Self Contained Hydraulics

Mandrel Uncoiler
Powered Hold-Down Roll
Hydraulic Expansion
Water Cooled Brake
Feed-Up Motor
Sliding Base

Hydraulic Peeling Table
Driven Pinch Rolls
Adjustable Edge Guides

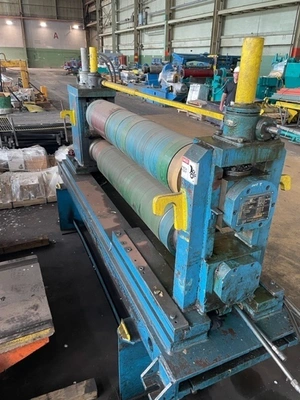

4-Roll Coil Breaker

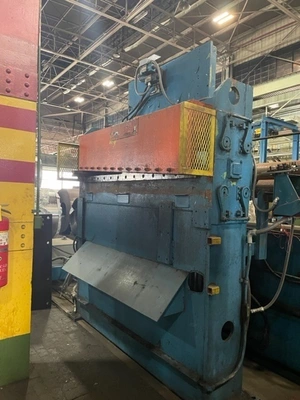

Mechanical Entry Crop Shear

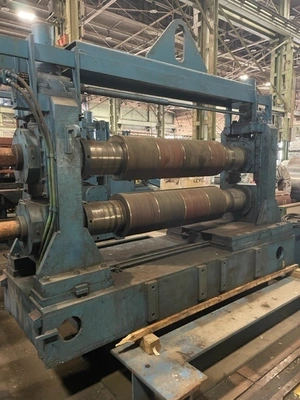

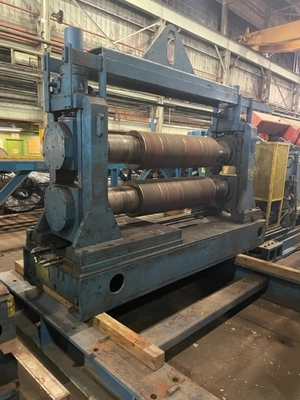

Two (2) Slitting Heads
Arbor Diameter: 9" and 12"
Crane Removable Type
Adjustable Arbors
150HP DC Motor Drive
Multi Speed Gear
Lots of Knives and Tooling

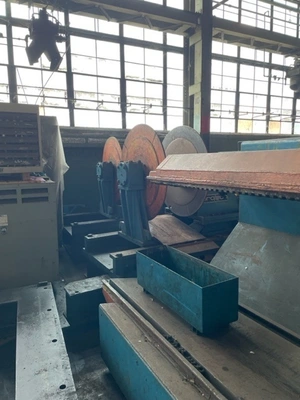

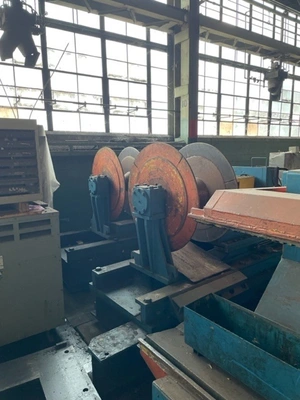

Two Pro-Eco Scrap Winders
Max Thickness: .500"
25HP Motor for Each Unit
Powered Open / Close

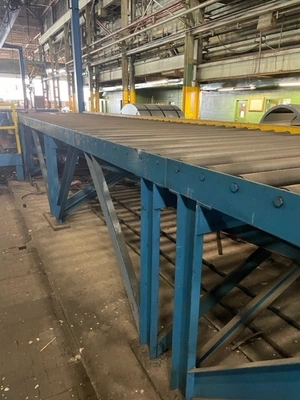

Pit Cross Over Table

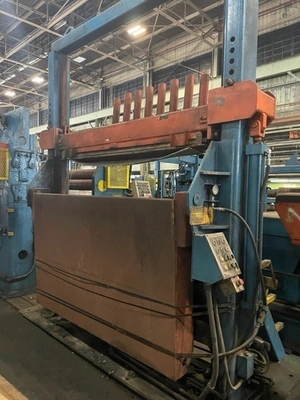

Drag Board Tension Stand
Recoiler Feed Table
Strip Separating Bar with Tooling

Recoiler
Powered Over-Arm Separator
Hydraulic Push-Off
Hydraulic Gripper
125HP DC Motor Drive
Multi Speed Gear Box

Exit L-Type Coil Car
Floor Standing Design
Hydraulic Lift and Traverse
Self Contained Hydraulics

Electrics, Hydraulics, Controls, PLC, Lots of Tooling
