14″ x .060″ x 6,000Lb Ruesch Slitting Line

Ruesch Precision Slitting Line
Model 149 Integral Slitter - Recoiler Assembly
SERIAL #: 5867
Line is fully refurbished and in running condition.
Capacity: 14" x 0.005" - 0.060"
Line Direction: Right to Left
Consisting of:

-Uncoiler: Rowe
  Capacity: 7,500 lbs
  Model: 7520-DS/L
  Manual Expansion: 17" - 20"
  27.5" Face Mandrel
  (4) Segment Mandrel
  Link Type Expansion
  (4) Segment Mandrel
  Motorized with Loop Control Arm
  2 Hp, AC Motor
  Electric Clutch and Brake
  Includes 4 Keepers
  51" Pass-line from floor to center of Mandrel
  Overall Size: 72" L x 38" W x 60" High

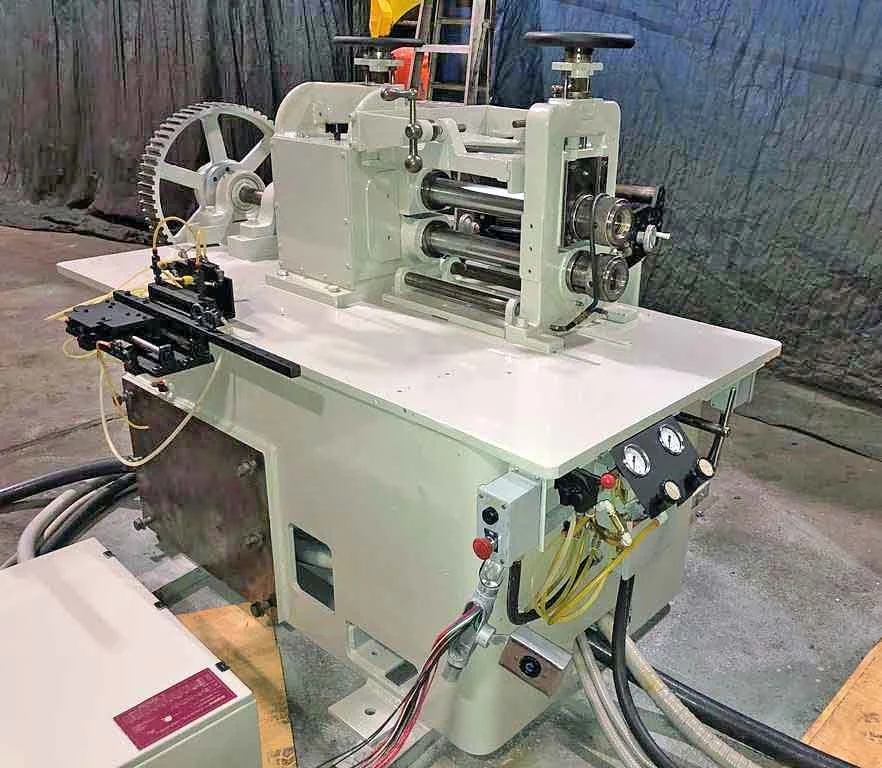

-Slitter Head:
  N 2535
  2.875" Dia. x 14.5" Face Arbors W/Jet Nuts
  Entry Pass-line Roll
  Entry Side Guides, Manual Adjustment
  Steel Stripper Ring Assembly
  Exit Scrap Guides, Air Cylinder Operated
  30 HP DC Motor, 230 V
  ABB DCS-400 SCR Control - New in 2003
  Common Drive with Recoiler
  Overall Size: 86" L x 55" W x 59" High

-Scrap Winder:
  AC Drive Motor
  Wichita Clutch

-Recoiler:
  16" Dia. x 18" Face Drum
  Manual Expansion
  Material Slot
  Hydraulic Push-off
  Wichita Water Cooled Brake
  Pass-line: 49.5" from Floor to Center of Drum
  (Common Drive from Slitter Head)
  Self-Contained Hydraulic Power Unit
  3 HP AC Motor, 230/460 V
  Overall Size: 118" L x 88" W x 66" High

-Main Operators Panel: New in 2003
Electrics, Hydraulics, Controls, Tooling, Spare Parts
