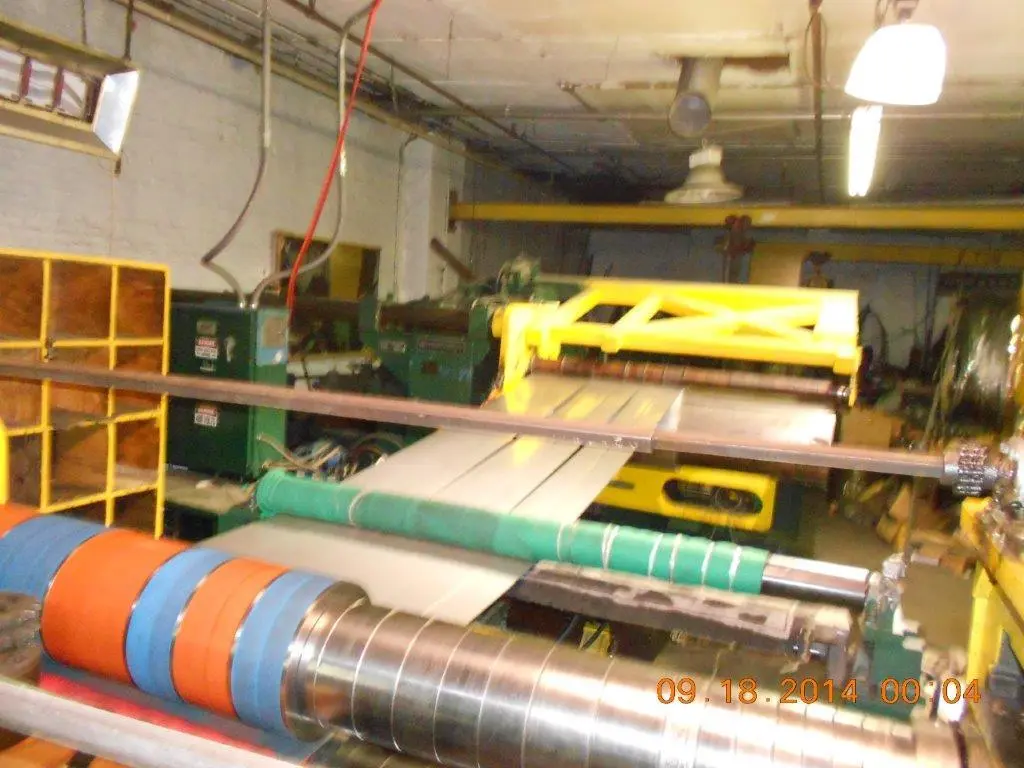

72″ x .187″ x 20,000Lb Universal Slitting Line

Material Width: 12" - 72"
Material Thickness: .015" - .187"
Coil Weight: 20,000Lb
Coil ID: 20"
Coil OD: 72"
Direction: Left to Right

Entry Floor Standing Coil Car
L-Type Design
Hydraulic Lift & Traverse

Mandrel Uncoiler
Powered Hold-Down Roll
Hydraulic Expansion
Air Cooling Brake
Sliding Base
Hydraulic Peeling Table

Slitting Head
Arbor Diameter: 7"
Powered Arbor Adjustment
100HP DC Motor
Knives & Tooling

Recoiler
Powered Push-Off
Hydraulic Over-Arm Separator
Hydraulic Expansion
100HP DC Motor

Exit 2-Arm Turnstile
Arm Width: 72"
Powered Rotation

Complete Slitter with Electrics, Hydraulics, Controls, Tooling
