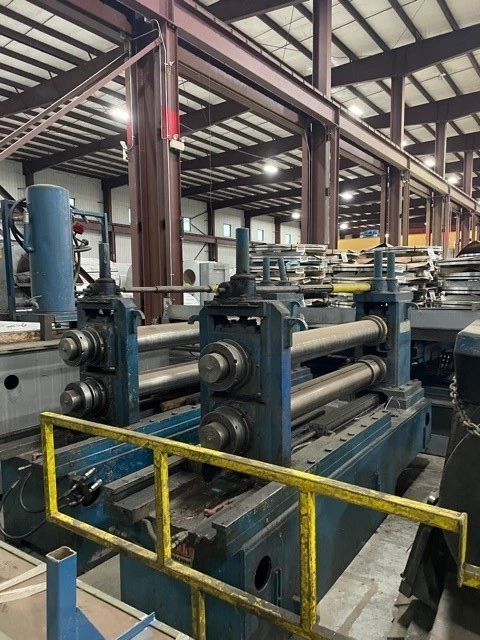

72″ x .187″ x 50,000Lb Paxson Loop Slitting Line
Have one to sell?
ConditionUsed
1 available
72" x .187" x 50,000Lb Paxson Loop Slitting Line with 7.5" Arbor Diameter, Rotary Tension Stand, Spare Parts, Electrics, Controls
Make: Paxson
Material Width: 12" - 72" (Uncoiler 60")
Material Width: .010" - .187"
Coil Weight: 50,000Lb
Coil ID: 20" - 24"
Coil OD: 72"
Speed: 500 /1000 fpm
Direction: Right to Left
Material Strength: 40,000 yield / 50,000 psi shear
Material: CR, HR, Galvanized
Entry Transfer Cart
Mechanical Traverse
Entry Coil Car
Floor Standing L-Type Design
Hydraulic Lift & Traverse
Self - Contained Hydraulics
Mandrel Uncoiler
Powered Hold-Down Roll
Powered Expansion
Sliding Base
Air Cooled Brake
Feed-Up Motor
Hydraulic Peeling Table
Driven Pinch Rolls
Mechanical Entry Crop Shear
Two (2) Slitting Heads
Arbor Diameter: 7.5"
Adjustable Arbors
Sliding Outboard Housing
175HP DC Motor Drive with Gear Box
Two (2) Scrap Winders
Mechanical Drive
Powered Open / Close
Exit Mechanical Crop Shear
Rotary Type Tension Stand
Spare Set of Tension Rolls
Strip Separating Bar
Wichita Tension Brake
Recoiler
Powered Over-Arm Separator
Powered Gripper
Hydraulic Push-Off
350HP DC Motor.Drive with Gear Box
Electrics, Hydraulics, Controls
