63mm x 2mm AEF ERW Tube Mill, 200Kw High Frequency Welder, Cut-Off Press, Double End Uncoiler, Vertical Accumulator, Tooling
Male: AEF (American Electric Fusion)
Tube Diameter: 15mm - 63.5mm
Material Thickness: 0.5mm - 2mm
Tube Length: 6 meters
Double Mandrel Uncoiler
Powered Rotation
Tension Brake
Feed-Up Motor
Entry Shear & End Welder
TIG Power Supply
Vertical Accumulator
Make: Kent
Driven Entry and Exit Pinch Rolls
Strip Guiding Unit

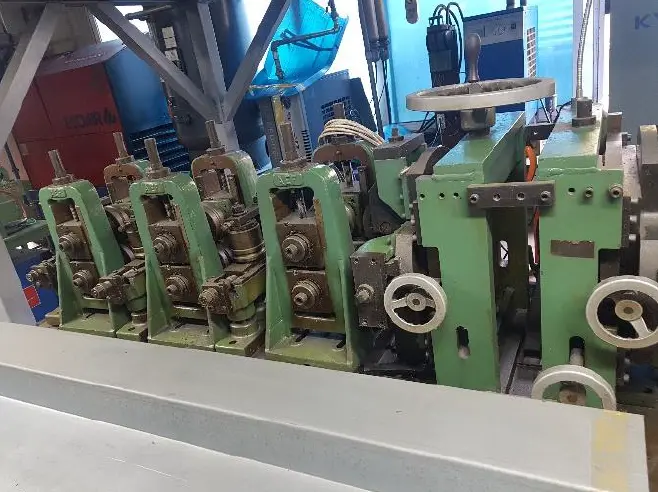

Forming Mill
Individual Gear Boxes
Universal 50HP DC Motor
Six (6) Forming Stand
Five (5) Side Stands
Welding Section
Make: Thermatool
Type: Vacuum ERW Design
Power: 200Kw
Mechanical Welding Head
Beat Removing Head with Winder
Cooling Tank & Pump
Sizing Mill
Individual Gear Boxes
30HP Universal Drive
Three (3) Sizing Stands
Three (3) Side Stands
Double Sides Turk Heads
Cut-Off Press
Flying Cut - Off System
7.5HP AC Motor
Digital Length Control System
Driven Run Out Conveyor
End Table with Dumping Section
Complete Mill with Electrics, Hydraulics, Controls, Tooling
