72″ x .500″ x 60,000Lb Delta / Alcos CTL Line

Make: Delta / Alcos
Material Width: 36" - 72"
Thickness Capacity: .048" - .530"
Weight Capacity: 60,000Lbs
Coil ID: 16" - 24"
Coil OD: 72"
Yield Strength: 50,000PSI
Direction: Right to Left

Coil Storage Conveyor
Entry Coil Car
Hydraulic Lift and Traverse

Cone Uncoiler
DC Motorized Brake
Sliding Base
Wichita Cooled Brake
Powered Hold-Down Roll

Hydraulic Peeling Table
Powered In & Out
Set of Driven Pinch Rolls

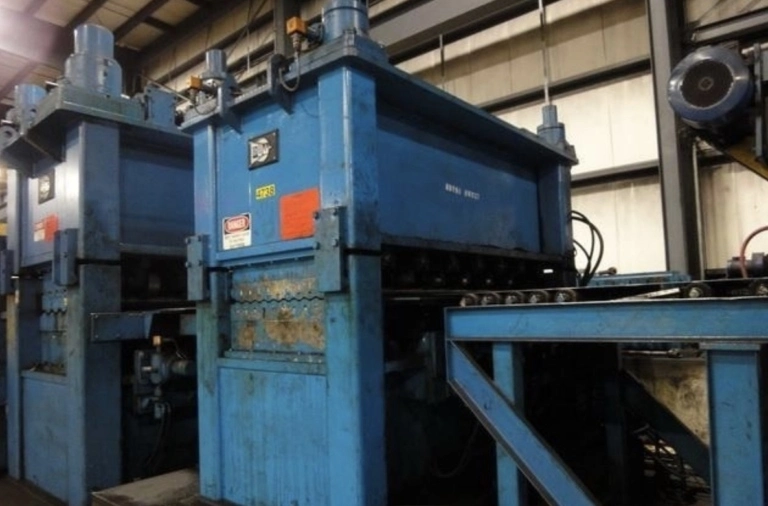

Delta Corrective Plate 4-Hi Leveler
Number of Work Rolls: 9
Work Roll Diameter: 8"
Work Roll Width: 82"
Powered Up & Down Back-Up Flights
DC Motor & Drive

Delta Corrective 4-Hi Leveler
Number of Work Rolls: 19
Work Roll Diameter: 4"
Work Roll Width: 82"
Motorized Back-Up Flights
Powered Work Roll Adjustment
DC Motor & Drive

Alcos Mechanical Shear
Down Cut Shear
Driven Entry Pinch Rolls
Pneumatic Clutch & Brake
AC Motor Drive

Alcos Drop Type Stacker
40' Sheet Length
Driven Exit & End Conveyrors

Touch Screen Digital Panel
Operator Push Botton Station
Digital Read Outs
Hydraulics, Electrics, Controls, Presently Installed
