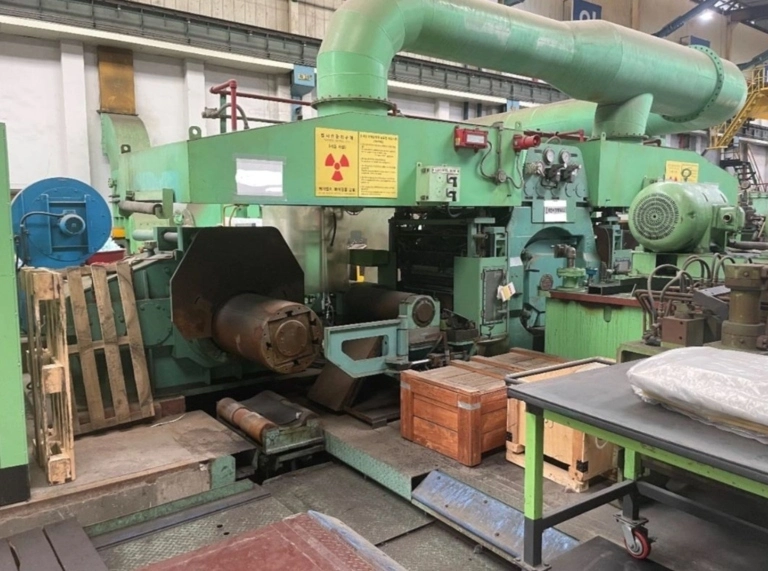

660mm Waterbury 12-Hi Cluster Cold Reversing Rolling Mill
Have one to sell?
ConditionUsed
1 available
Material: Copper, Brass, Bronze, Upgraded in 2009, Two (2) Reversing Tension Reels, Two (2) Coil Cars, AGC Gauge Control System, Two (2) Z Wipers with Base, Fume Exhaust System, Coolant System with Filter System, Hydraulic System, Fire Extinguisher System, Electrics, Controls. Entry Material Thickness: 1.53mm, Material Width: 300mm – 660mm, Coil ID: 508mm, Max OD: 1350mm, Coil Weight: 6,500kg, Exit Material Thickness: 0.051mm, Speed: 280 mpm, Direction: Left to Right, Strip Tension: 5000kg per 280 mpm speed, Work Rolls Diameter: 460mm, Intermediate Rolls Diameter: 1050mm, Back Up Rolls Diameter: 2250mm, Motor Drive: DC 500HP, Tension Reel Motors: DC 230Kw, AGC System with Y-Ray Gauge, Mineral Oil Coolant System, Fume Exhaust System, Electrics, Controls, Drives, Spare Parts
Material: Copper, Cu-Alloy [ Brass, Bronze, Cu-Ni] Material
Brand: WATERBURY FARREL, USA
Year Refurbished: 2009
Tension Reel 2 set,
Coil car 2 set,
AGC Gauge System with Base 2set,
Z Wiper with Base 2set,
Fume Exhaust System
Coolant system with Super - Mic Filter System,
Hydraulic System
Fire Extinguisher System,
All Electric controller
Incoming Strip Thickness: Max 1,53mm
Width: Max 660mm – Min 300mm
Coil ID: 508Ømm
Coil OD: Max 1,350Ømm
Coil Weight: Max 6,500kg
Finished Strip thickness: Min 0,051mm
Width: Max 660mm – Min 300mm
Coil ID: 508Ømm
Coil O,D: Max 1,350Ømm
Coil Weight: Max 6,500kg
Rolling Speed: Max 280m/min
Rolling direction: First pass / Left to Right
Strip Tension: Max 5,000kg to 280m/min speed
Work Rolls Dia: 1,812inch [ 46Ømm ]
Intermediate Rolls Dia: 4,125inch [ 105Ømm ]
Backup Rolls Dia: 8,858inch [ 225Ømm ]
Drive Motor Mill: DC500Hp 575/950RPM [1] motor
Tension Reel: DC 230kw 450/1200RPM [2] motor
AGC System Gauge Y –Ray gage
Coolant system: Mineral Oil
Flow Rate: 250GPM to Spray 946 LPM
Clean Oil: 6,825L/Tank
Dirty Oil: 6,518L/Tank
Fume Exhaust: 31,860M3/Hr
Utility Source Electric: 440volt x 3Phase x 60Hz
Control: 220volt x 1 Phase x 60Hz, DC24Volts
Currently on Foundation
