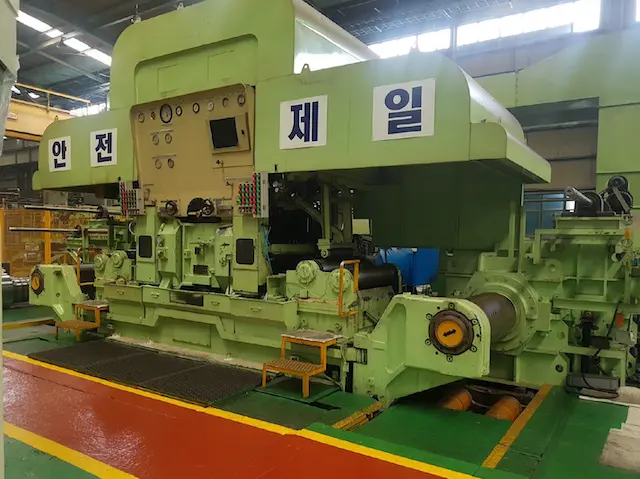

815mm Sendzimir ZR-33 Cold Reversing Rolling Mill
Have one to sell?
ConditionUsed
1 available
Make: Sendzimir, Model: ZR33-C32, Type: Cold Reversing Mil, Fully Refurbished in 2005, Material Width: 350mm – 815mm, Material Thickness: 3mm – 0.03mm, Coil OD: 1600mm, Coil ID: 508mm, Weight: 10 ton, Speed: 260/320/500 mpm, Work Roll Diameter: 32mm x 2, First Intermediate Rolls: 54mm x 4, Second Intermediate Rolls: 92mm x 6, Back Up Rolls: 160mm x 8, Gauge Thickness Control, Mill Motors: 680Kw DC x 2, Coilers Motors: 680Kw DC x 2, Cooling Oil Filtration System, Spare Rolls and Parts
Make: Sendzimir
Model: ZR33-C32
Type: Cold Reversing Mill
Fully Refurbished: 2005
Material Width: 350mm - 815mm
Material Thickness: 3mm - 0.03mm
Coil OD: 1600mm
Coil ID: 508mm
Coil Weight: 10 ton
Mill Speed: 260 / 320 / 500 mom
Work Roll Diameter: 32mm x 2
1st Intermediate Roll Diameter: 54mm x 4
2nd Intermediate Roll Diameter: 92mm x 6
Back Up Rolls Diameter: 160mm x 8
Paully Thickness Gauge Control System
Motor: Jeumont / Schneider 580V
Mill Drives: ABB
Mill PLC: MHI (Japan)
Gauge Control PLC: Siemens
Mill Drive Motors: 680Kw DC x 2
Coiler Motors: 680Kw DC x 2
Three Mode Tension System
Cooling Oil Filtration System
Spare Rolls, Spare Parts
