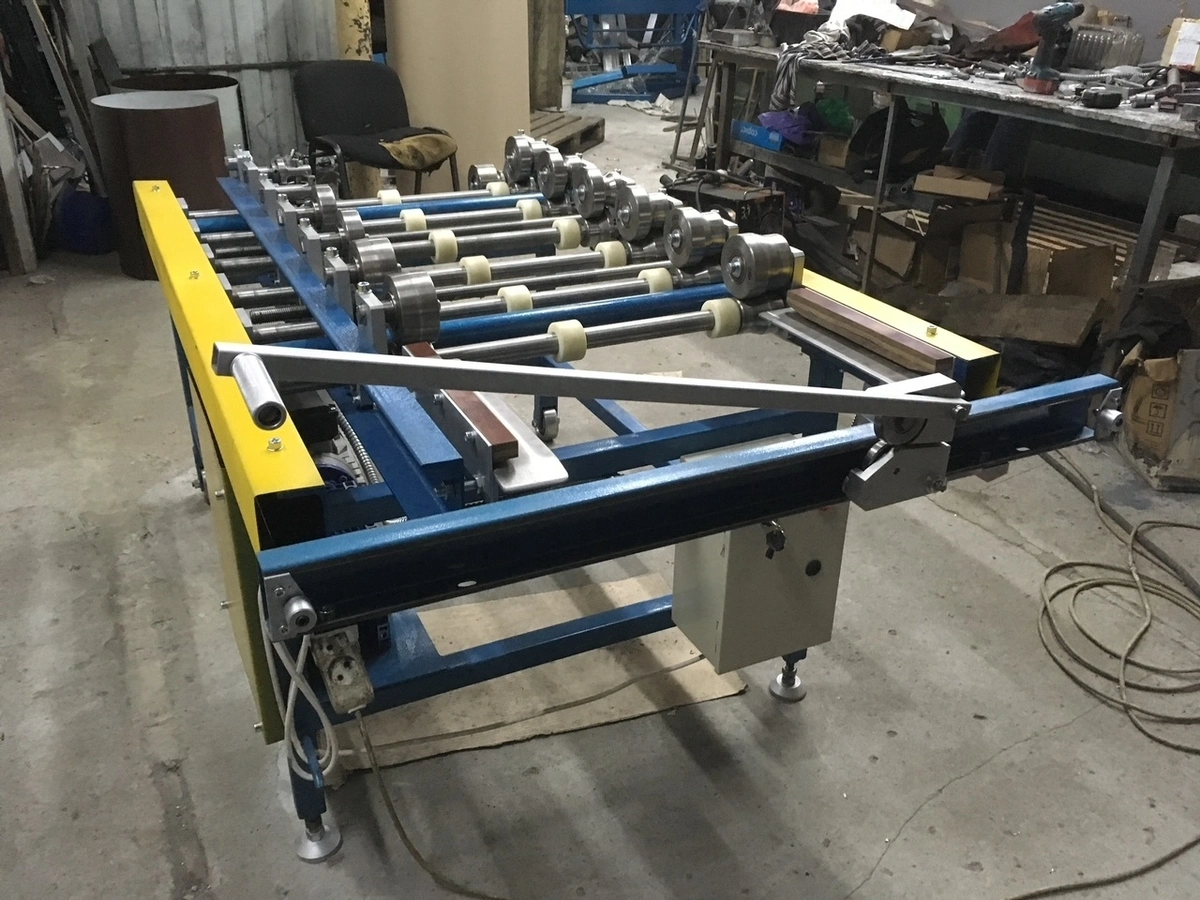

Fisher F3 6-Stand Portable Easily Adjustable Standing Seam Roof Panel Roll Forming Machine
Main Technical Data:
Dimensions: 1600x850x1000mm
Weight: 250 kg
Motor Power: 1.5kw
Voltage: 380V/50Hz/3PH or 220-240V/50-60Hz
Forming Steps: 6 steps
Forming Steel Thickness: 0.4-0.7mm
Forming Aluminum Thickness: 0.7-1.0mm
Height of Roofing: 25mm
Material Width: 250-700mm
Tolerance: +-1mm
Roller material: high grade 45#
Material of principal axes: high grade 45# steel
