30” x .110” x 10,000Lb Tishken Slitting Line

Make: Tishken
Material Width: 30”
Gauge: .010” – 110”
Weight Capacity: 10,000Lbs
Coil ID: 16”-20”
Coil OD: 62”
Direction: Right to Left

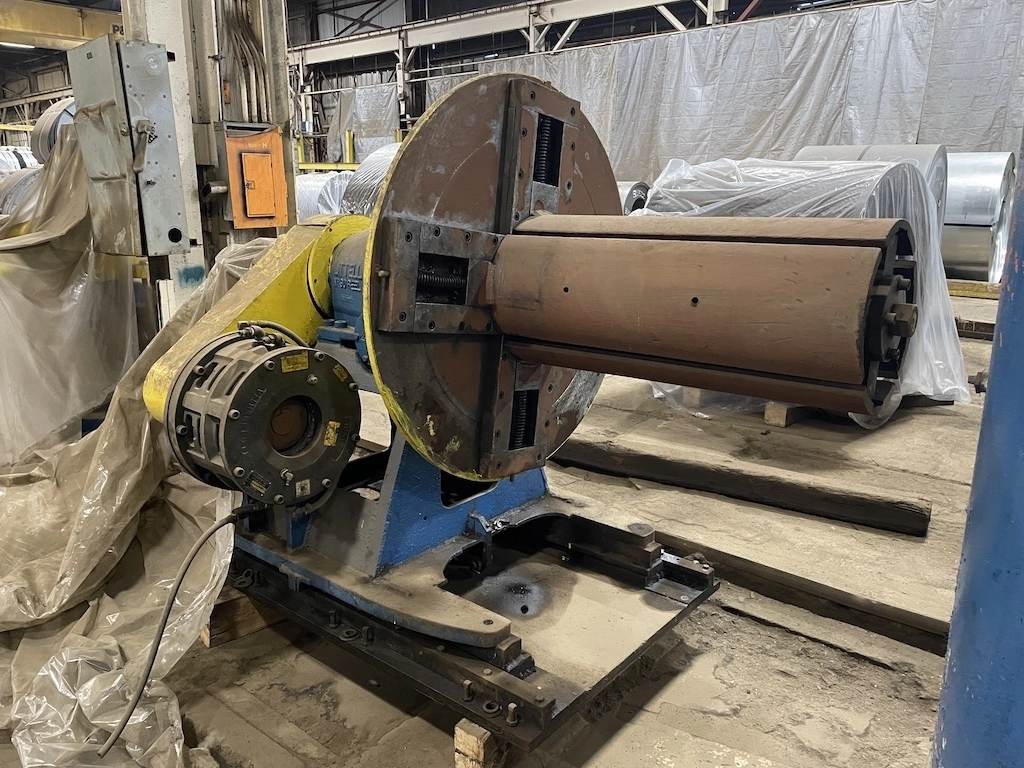

Mandrel Uncoiler
4-Leaf Mandrel Design
Mandrel Width: 38.5”
Coil ID: 18" - 20"
Hydraulic Expansion
Wichita Tension Brake
Sliding Base

Slitting Head
Entry Driven Pinch Rolls
Arbor Width: 32”
Arbor Diameter: 3.25”
Adjustable Outboard
Manual Arbor Adjustment
Feed-Up Motor Drive

Recoiler
Face Width: 34.5”
Powered Over Arm Separator
Hydraulic Push-Off
Manual Gripper
Motor: 75HP @ 650/1950 RPM

3-Arm Exit Turnstile
Capacity: 10,000Lbs
Manual Rotation

Electrics, hydraulics, controls, tooling.
