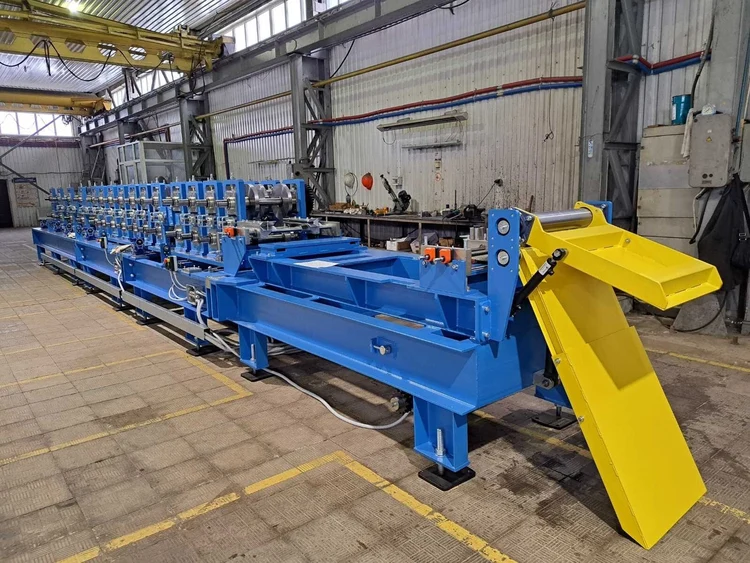

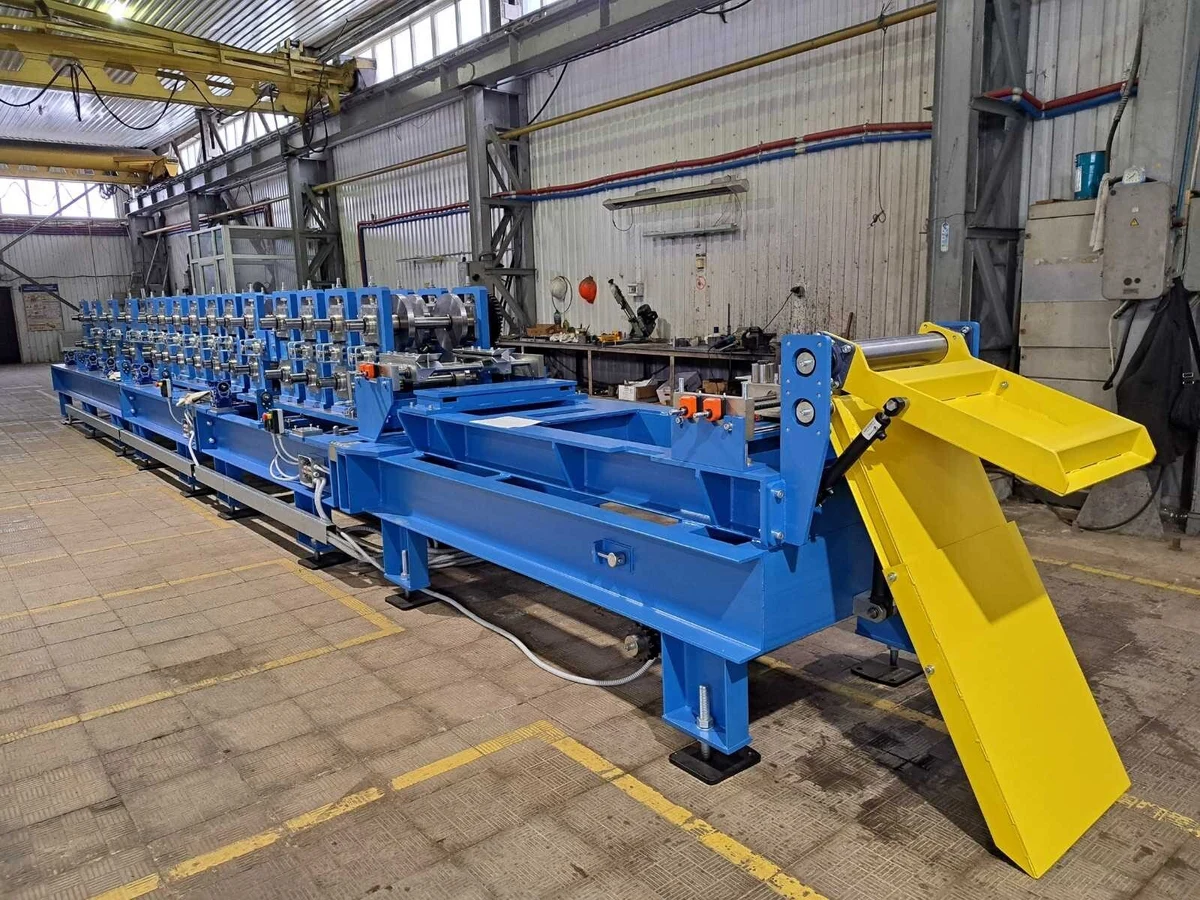

16 - Stand C & U & Z Purlin Roll Forming Line

Make: Finprofile (Ukraine)
Profile: C, U, Z Purlin
Number of Stands: 16
Maximum Material Width: 490mm
Material Thickness: 1mm - 3mm
Coil Weight: 4,000kg
Coil ID: 480mm - 620mm
Coil OD: 1500mm
Speed: 20 meters per minute

Entry Coil Car
Floor Standing Design
Powered Lift and Traverse

Mandrel Uncoiler
Powered Hold Down Roll

Coil Straightener
Adjustable Work Rolls

Pre Punching Press
4-Post Design
Hydraulic Drive

Pre Cut Off Press
4-Post Design
Hydraulic Drive

16-Stand Roll Former
Chain Driven Stands
Entry Edge Guides
Adjustable Width and Height
Motor: 45Kw AC
Powered Exit & Run Out Table
Maximum Profile Length: 12m

Electrics, Hydraulics, Controls, Tooling & Dies
