168mm x 7mm DMC HF Tube Mil & Automatic Packaging Line l

Make: DMC (Korea)
Year New: 2018
Material: HR, CR
Pipe Diameter: 50mm - 168mm
Wall Thickness: 1.4mm - 7mm
Speed: 20 - 60 mpm
Pipe Cut Tolerance: 2mm
Max Pipe Length: 6 - 12 meters
Coil Width: 150mm - 600mm
Coil ID: 610mm
Coil OD: 1600mm - 2000mm
Coil Weight: 12 ton

Entry Floor Standing Coil Cat
Mandrel Uncoiler
Powered Hold Down Roll
Strip Shear and End Welder
Coil Straightener

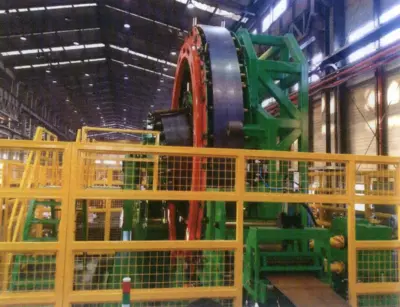

Vertical Coil Accumulator (Motor: 30Kw / 600 - 1200 rpm)

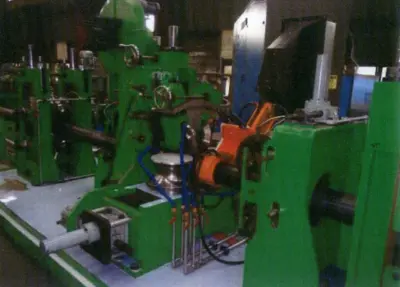

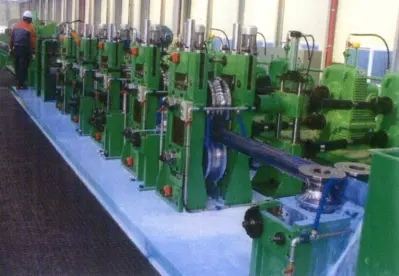

Forming Mill
Shaft Diameter: 120mm
Universal Drive
Individual Gear Boxes
Motors: 110Kw & 75Kw / 500 - 2000 rom

Welding Section
500Kw High Frequency Welder
Oscilation Section
Adjustable Squeeze Box
Shaft Dia: 110mm & 60mm
Automatic Scrap Winder
Cooling Section

Sizing Mill
Shaft Diameter: 105mm
Universal Drive
Individual Gear Boxes
Motor: 130Kw / 500 - 2000 RPM
Adjustable Turk Heads

DC Drive: Eurotherm Digital Type
PLC: LG (Korea)

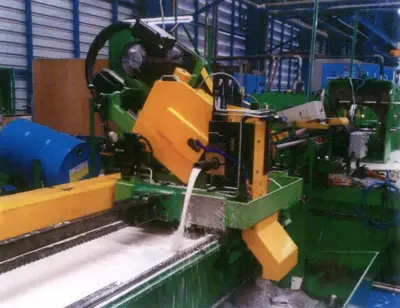

Cold Saw Cut Off Section
Traverse Distance: 4,500mm
DDC System
Motor: 42Kw Servo Feed
Saw Motor: 30Kw / 2000RPM
Driven Run Out Table

Fully Automatic Packaging Line (For Profile Only)
Numerous Sets of Tooling for Round and Profile

Electrics, Hydraulics, Controls, Presently Installed
