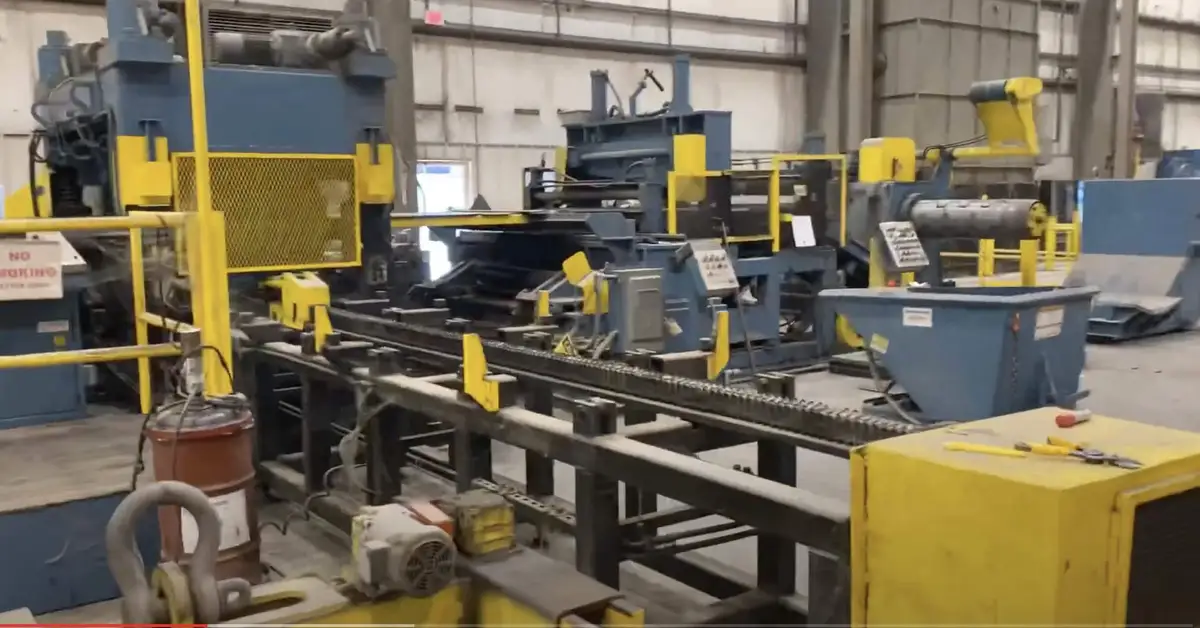

60" x .187" x 50,000Lbs Pro Eco CTL Line with Cassette Type Precision Leveler

MANUFACTURER - PRO-ECO
YEAR - 1985, REINSTALLED 2002
WIDTH RANGE - 8" to 60"
GAUGE RANGE - .024" to .187"
WEIGHT CAPACITY - 50,000# (25 TON)
COIL OD - 36" to 72"
COIL ID - 19" to 24"
SHEET LENGTH - 24" to 168"
SHEET WIDTH - 8" to 62"
PACK HEIGHT - 30" (INCLUDING DUNNAGE)
PACK WEIGHT - 20,000#
LINE DIRECTION - RIGHT to LEFT
LINE SPEED - 50 to 300 FPM (VARIABLE)
LEVELER TYPE - MECHANICAL WEDGE STYLE w/ TWO CASSETTES

LINE COMPONENTS:

FOUR ARM ENTRY STORAGE TURNSTILE

FLOOR LEVEL COIL LOADING CAR

CANTILEVERED MANDREL UNCOILER w/ WATER COOLED BRAKE

PIVOTING AND TELESCOPING PEELER BLADE

ENTRY PINCH ROLLS

ROLLER TYPE SIDE GUIDES

ENTRY CROP SHEAR

SIDE TRIMMER HYDRAULIC SERVO DRIVE (CURRENTLY NOT OPERATIONAL)

MECHANICAL STYLE LEVELER FRAME W/ 200 HP MOTOR

CASSETTE #1 - 19 ROLL, 2.50" DIAMETER, 5 HI, 7 BACKUP FLIGHTS

CASSETTE #2 - 19 ROLL, 1.75" DIAMETER, 5 HI, 7 BACKUP FLIGHTS

STRIP INSPECTION AND CARRY-OVER TABLE w/ NON-MARKING ROLLS

LOOPING PIT QUADRANT TABLES w/ NON-MARKING ROLLS

ROLLER TYPE STRIP SQUARING TABLE

PRECISION ROLL FEEDER W/ 55 HP MOTOR

HIGH SPEED MECHANICAL CUT OFF SHEAR W/ 40 HP MOTOR

BLANK INSPECTION CONVEYOR w/ NON-MARKING BELT

REJECT BELT CONVEYOR w/ NON-MARKING BELT AND SCRAP CART

14 FOOT AIR FLOAT STACKER w/ SQUARING GUIDES AND END STOP

14 FOOT STACKER LIFT CONVEYOR w/ END DISCHARGE ROLLERS

14 FOOT STACKER RUNOUT CONVEYOR w/ END DISCHARGE ROLLERS

OPERATOR CONTROL STATIONS

UPDATED AC CONTROLS w/ ALLEN BRADLEY "CONTROL LOGIX" PLC (2006)

UPDATED DRIVE CONTROLS w/ SIEMENS "SIMOREG" CONTROLLERS (2006)

CLOSED LOOP HYDRAULIC SYSTEM

CLOSED LOOP WATER COOLING SYSTEM
