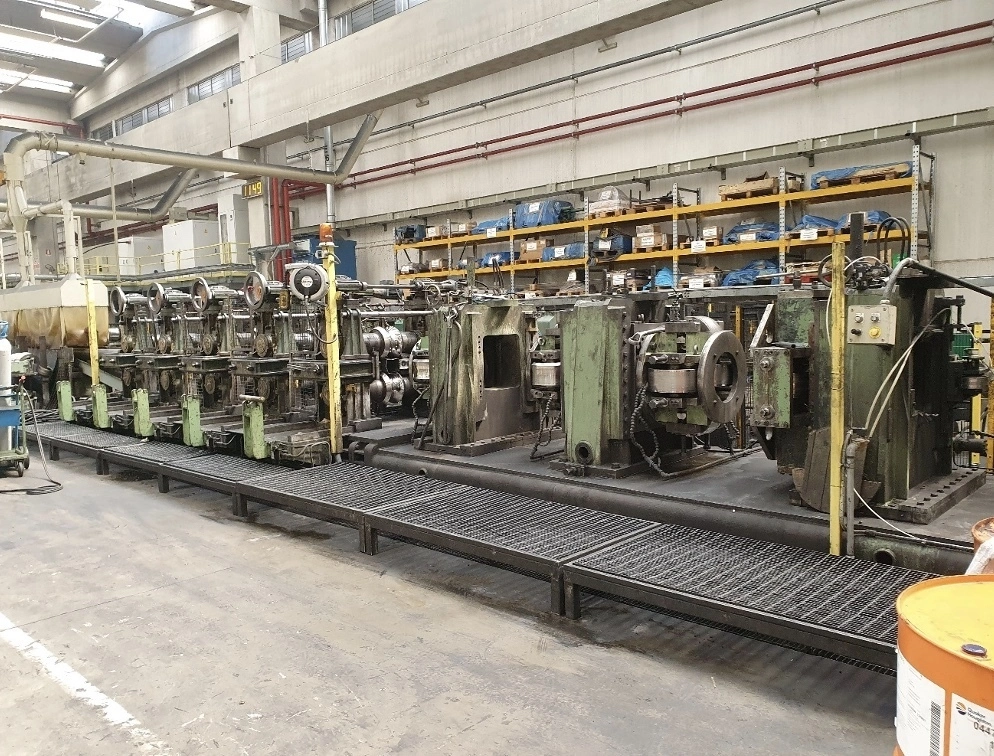

323mm x 8mm Ome Tube Forming & Sizing Mills

Make: Ome (Italy)
Material: HR, CR, Galv
Condition: New
Tube Diameter: 168mm - 323mm
Wall Thickness: 2mm - 8mm
Direction: L-R
Speed: 35 meters per minute

FORMING MILL
Pass N. 1 Driven Forming # 1
Pass N. 2 Driven Forming # 2
Pass N. 3 Driven Forming # 3
Pass N. 4 Driven Forming # 4
Pass N. 5 Driven Forming # 5
Pass N. 6 Driven Forming # 6
Pass N. 7 Side Idle Forming
Pass N. 9 Driven Forming # 7
Pass N. 10 Side Idle Forming

FIN-PASS SECTION, SINGLE POINT ADJUSTMENT
Pass N. 11 Driven Fin Pass # 1
Pass N. 12 Side Idle Fin Pass
Pass N. 13 Driven Fin Pass # 2
Pass N. 14 Side Idle Fin Pass
Pass N. 15 Driven Fin Pass # 3
Pass N. 16 Driven Fin Pass # 4

SIZING SECTION
Pass N. 26 Driven Sizing # 1
Pass N. 27 Driven Sizing # 2
Pass N. 28 Driven Sizing # 3
NDT Prueftechnik
Pass N. 29 Driven Sizing # 4
Pass N. 30 Driven Sizing # 5

STRAIGHTENING AND SQUARING SECTION

Pass N. 31 Idle Turkshead #1 Roll holder plates NOT available
Pass N. 32 Idle Turkshead #2 Roll holder plates NOT available
Pass N. 33 Idle Turkshead #3 Roll holder plates NOT available
Pass N. 34 Idle Turkshead #4 Roll holder plates NOT available
Tables and tools for rolls change

ABB Motors

Costamasnaga Reducers

Centralized lubrication system

Hydraulic Power Unit

Complete Mill Portion Automation with diagrams (OTO MILLS/Elletre 2013)

Complete hydralic system

Fume and Vapors exhaust system with extraction hoods (EUROFILTER)

Complete Zinc exhaust system (DONALDSON)
