60" x .135" x 50,000Lb Cincinnati - Herr Voss Slitting Line

Make: Cincinnati - Herr Voss
Material Width: 12" - 60"
Material Thickness: .010" - .135"
Coil Weight: 50,000Lb
Coil ID: 16" - 24"
Coil OD: 72"
Speed: 1600 feet per minute
Direction: L-R

Entry Pit Type Coil Car
Powered Lift and Traverse

Double Mandrel Uncoiler
Powered Hold Down Roll
Sliding Base
Motorized Brake
Hydraulic Peeling Table

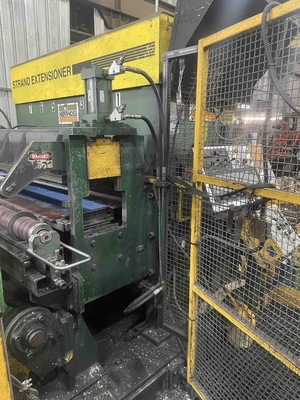

Edge Guiding Stand
Driven Entry Pinch Rolls

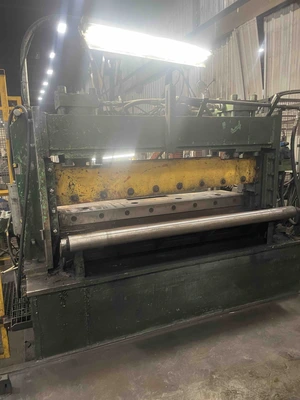

Mechanical Crop Shear

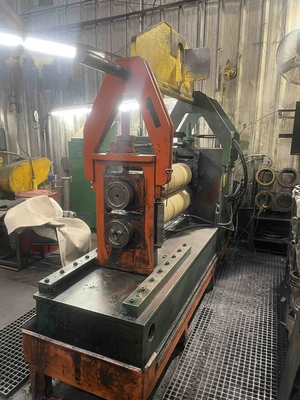

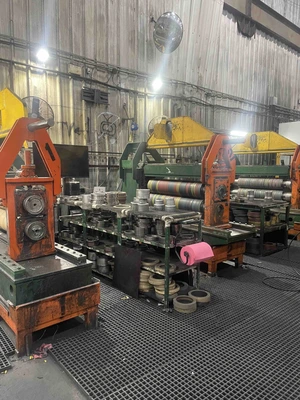

Three (3) Slitting Heads
Crane Removable Design
Adjustable Arbors
Motor: 200HP @ 1750 RPM DC

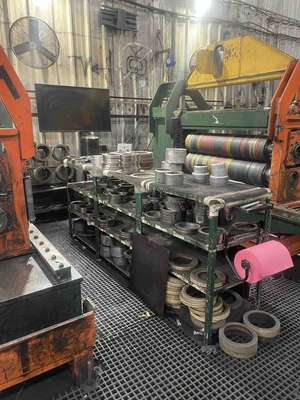

Knives & Tooling

Two (2) Scrap Winders

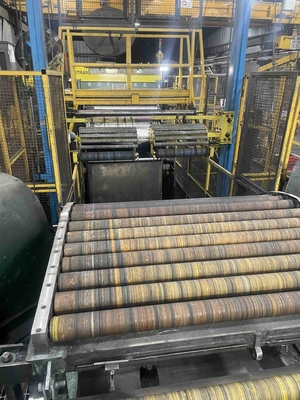

Drag Board Tension Stand

Herr Voss Leveler
Work Roll Width: 72"
Work Roll Diameter: 1.5"
Number of Work Rolls: 17
Up & Down Back Up Flights

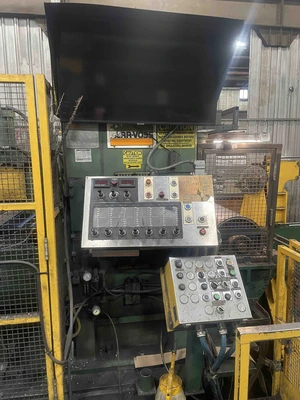

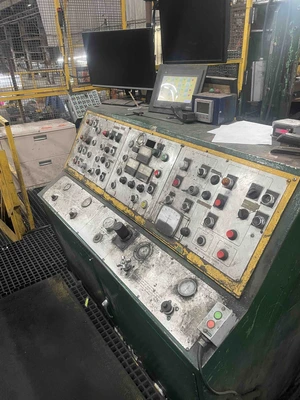

Digital Control Panel

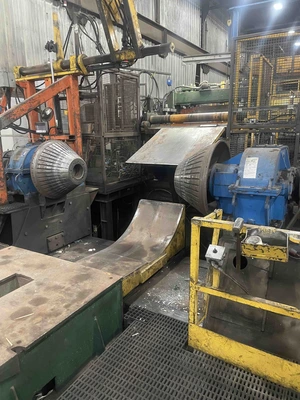

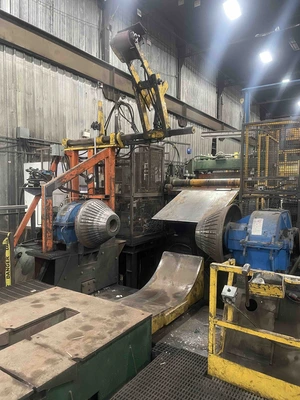

Recoiler
Powered Drum
Hydraulic Push-Off
Powered Over-Arm Separator
Motor: 200HP @ 650 / 2200 RPM DC

Exit Floor Standing Coil Car
Powered Lift & Traverse
Self Contained Hydraulics

4-Arm Turnstile
Powered Rotation

72" x 15,000Lb Packaging Line
Hydraulic Down-Ender
Driven Conveyors
Banding table
Coil Stacking System
7- Station Lazy Susan

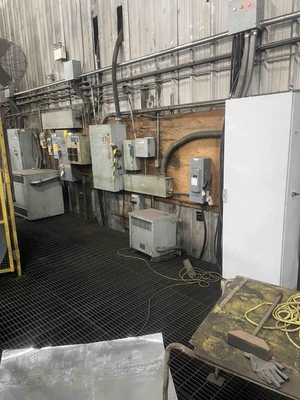

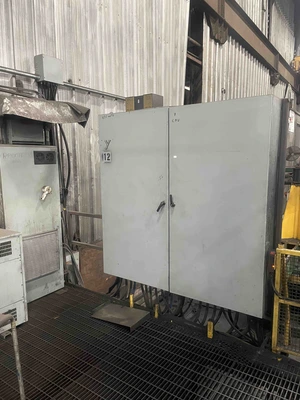

Electrics, Hydraulics, Controls, Lots Knives & Tooling
