72" x .187" x 60,000Lb Paxson Slitting Line

Make: Paxson
Type: Looping Line
Year: 70s / Updated Controls: 2000s
Material Width: 12" - 72"
Material Thickness: .020" - .187"
Coil Weight: 60,000Lb
Coil ID: 20" - 24"
Coil OD: 72"
Direction: Right to Left

Entry Coil Car
Floor Standing Design
Hydraulic Lift and Traverse

Cone Type Uncoiler
Pneumatic Clutch and Brake
Sliding Base
Feed Up Motor
Hydraulic Peeling Table

Adjustable Edge Guides
Driven Entry Pinch Rolls
Entry Mechanical Crop Shear

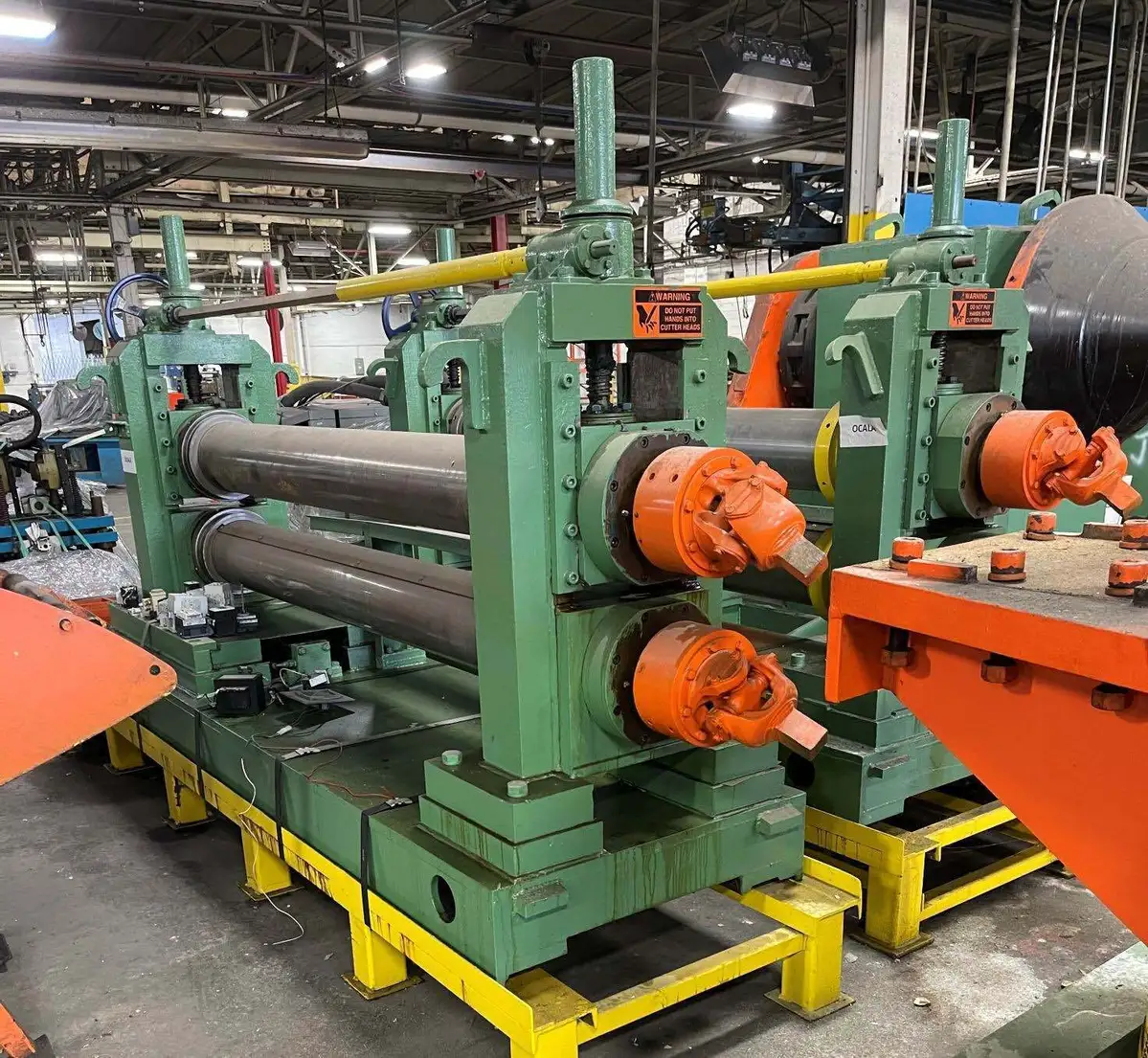

Two Slitting Heads
Type: Crane Drop In
Arbor Diameter: 9"
Adjustable Arbors
Motor: 75HP 650 / 2100 RPM

Two (2) Scrap Winders
Mechanical Heavy Duty Design
Self Dumping

Drag Board Tension Stand
Strip Separating Bar with Tooling

Recoiler
Powered Push Off
Powered Gripper
Hydraulic Over Arm Separator
Motor: 100HP 650 / 1950 RPM

Exit Turnstile
Powered Rotation
Powered Push Off

Electrics, Hydraulics, Controls, Knifes and Tooling, Spare Parts
