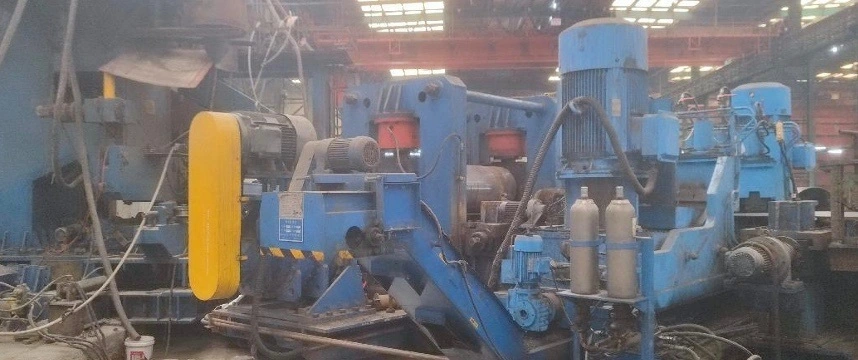

Used 2021 AOGANG 2000mm x 20mm Spiral Pipe Mill | Tube Mills

Year New: 2021
Material: Q235, Q355
Pipe Diameter: 426mm - 2000mm
Material Thickness: 6mm - 20mm
Strip Width: 750mm - 1600mm
Coil ID: 600mm - 760mm
Coil OD: 1500mm - 2200mm
Pipe Length: 8m - 12m
Type: Front Swing, Stop / Start, Center Positioning
Forming Type: 3 - Roll Bending, Out Roller Sizing
Forming Angle: 40 - 80 degrees

Mandrel Uncoiler / Coil Car
Coil Straightener
Shear and End Welder
Powered Guiding Rolls
Manual Vertical Guide Rolls
Edge Trimming Machine
Plane Cleaning Machine
Chip Conveyor
Delivery Rollers
Guding Beam
Forming Machine
Front Bridge
ID and OD Welding Units
Rear Bridge
Center Support
V-Type Support
Cut - Off Section
Run Out Table

Electrics, Hydraulics, Controls, Flux Collecting Platform
