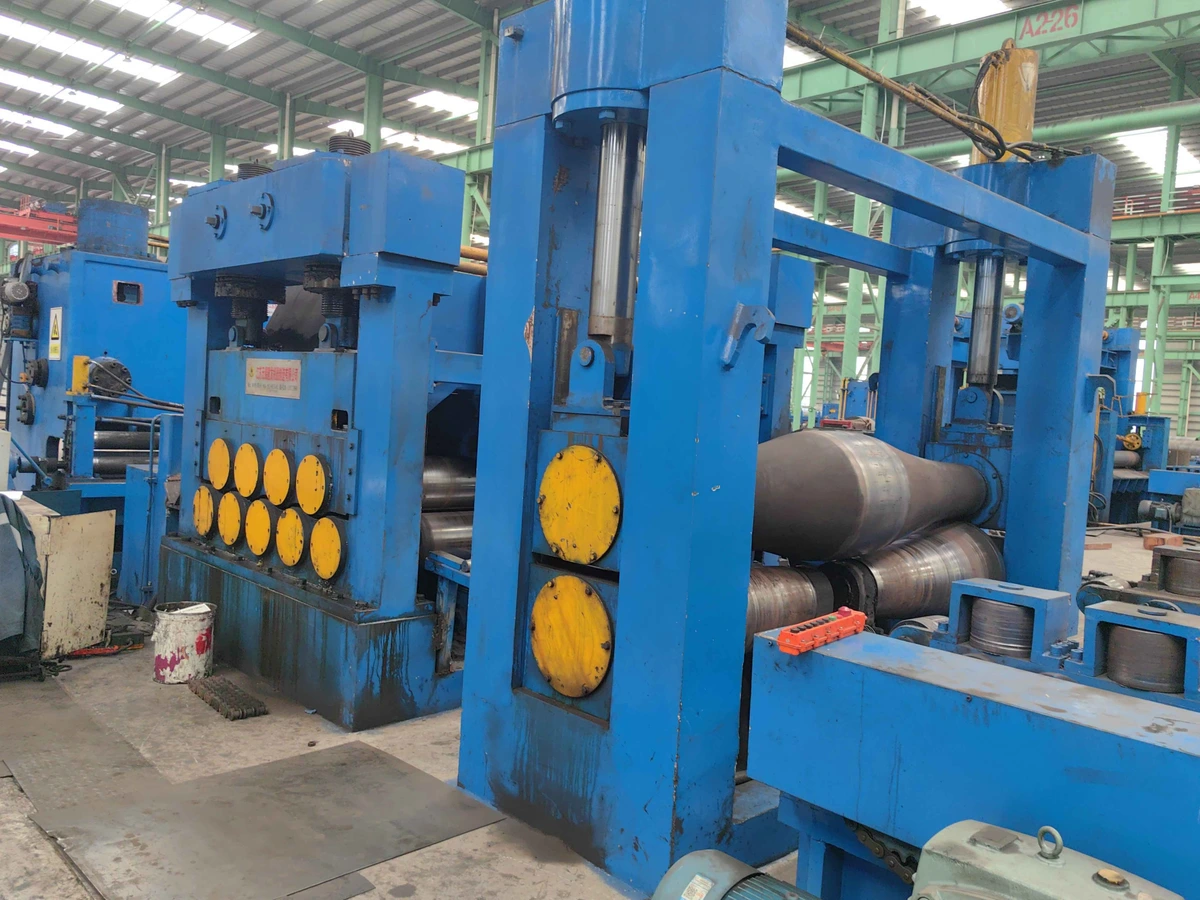

CMM 2500mm x 25mm x 30ton CTL Line

Material Width: 800mm - 2500mm
Material Thickness: 10mm - 25mm
Coil Weight: 30 ton
Coil ID: 400mm - 650mm
Coil OD: 1800mm
Direction: R-L

Entry Pit Type Coil Car
Powered Lift and Traverse

Dual Mandrel Uncoiler
Powered Sliding Base
Powered Hold - Down Roll
Motorized Brake
4 Column Heavy Duty Frame

Coil Breaker
Powered Rolls Adjustment
280Kw DC Motor
Adjustable Edge Guiding Stands

5-Rolls Coil Flattener
Powered Work Rolls Adjustment
Universal Drive
280Kw DC Motor Drive

9-Rolls Coil Flattener
Powered Work Rolls Adjustment
Universal Dive
400Kw DC Motor Drive
Powered Run Out Conveyor

Mechanical Shear
Pneumatic Clutch and Brake
AC Motor Drive
Powered Conveyor
Sheet Stacker

Electrics, Hydraulics, Controls
