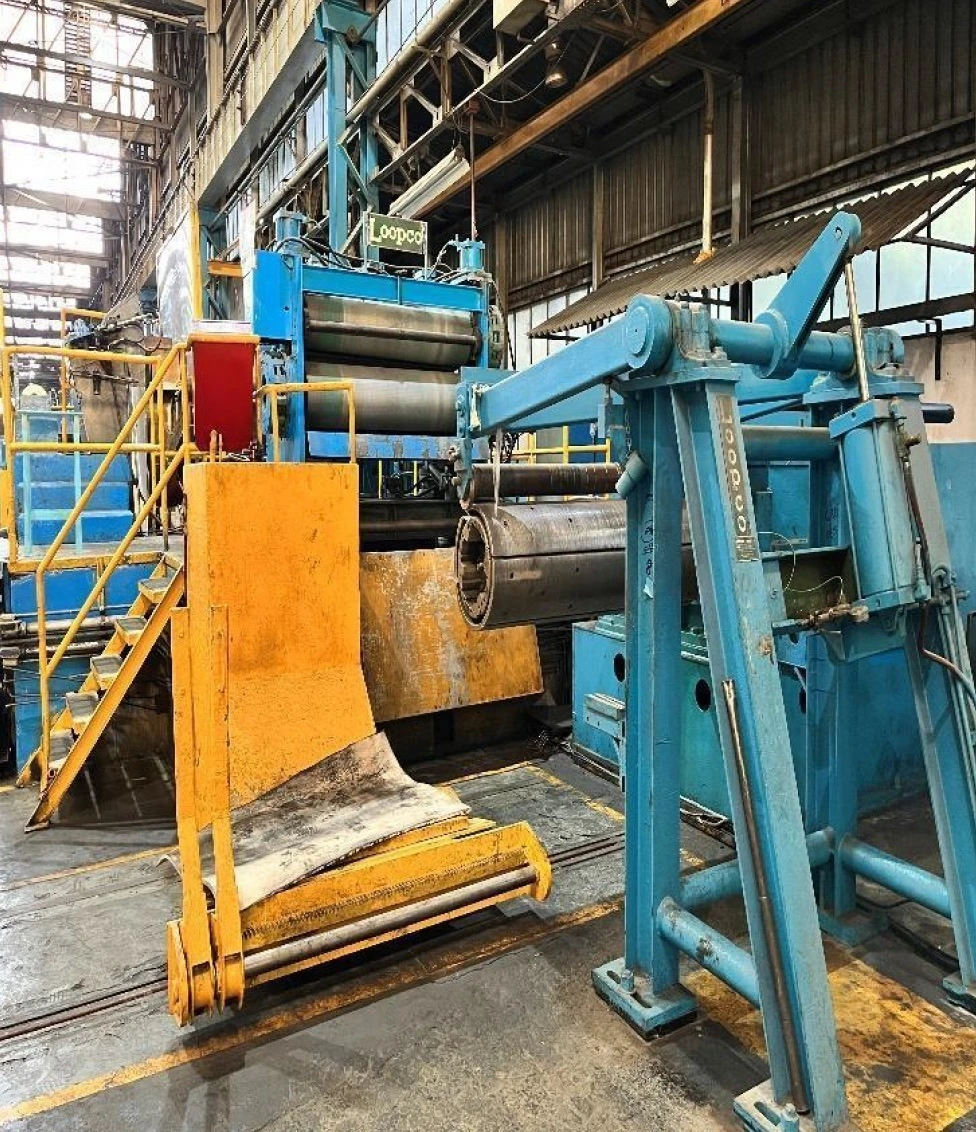

Used LOOPCO 60" x .130" x 30,000Lb Loop Slitting Line | Slitting Lines

Make: Loopco
Year New: 1982
Material Width: 12" - 60"
Material Thickness: .010" - .138"
Coil Weight: 30,000Lbs
Coil ID: 16" - 20" - 24"
Coil OD: 72"
Speed: 400 feet per minute
Direction; Left to Right

3-Arm Entry Turnstile
Powered Rotation

Entry L-Type Coil Car
Hydraulic Lift and Traverse

Mandrel Uncoiler
Powered Hold Down Roll
Sliding Base
75Kw Motor Drive
Hydraulic Peeling Table

Driven Entry Pinch Rolls
Adjustable Edge Guides

Slitting Head
Adjustable Arbors
Arbor Diameter: 6.5"
Motor: 45Kw DC Drive
Lots of Knives and Tooling

Pit Cross Over Table
Mechanical Scrap Winder

Rotary Tension Stand
Water Cooled Tension Brake
Coated Tension Rolls
Strip Separating Bar with Tooling

Recoiler
Coil ID: 16" - 20" - 24"
Powered Gripper
Self Standing Over-Arm Separator
Hydraulic Push Off
Motor: 112Kw DC Drive

L-Type Exit Turnstile
Hydraulic Lift and Traverse

2-Arm Exit Turnstile
Powered Rotation

Electrics, Hydraulics, Controls, Knives and Tooling
