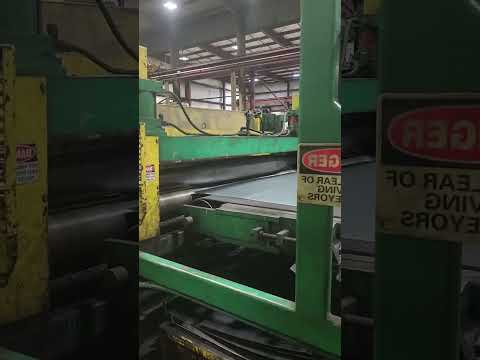

Used MCKAY 72" x .187" x 20,000Lbs McKay CTL Line | Cut to length Lines

Make: McKay
Material Width: 14" - 72"
Material Thickness: .020" - .187"
Coil Weight: 20,000Lbs
Coil ID: 16" - 24"
Coil OD: 72"
Line Speed: 150 feet per minute
Direction: Left to Right

Entry Coil Car
V-Type Floor Standing Type

Dual Cone Uncoiler
Make: Mesta
Self - Standing Powered Hold - Down Roll
Hydraulic Peeling Table
Sliding Base
Feed Up Motor

Driven Entry Pinch Rolls
Edge Guiding Rolls

McKay 4-Hi Leveler
Number of Work Rolls: 15
Work Rolls Diameter: 3.750"
Entry Pinch Rolls
Exit Coated Pinch Rolls
Up and Down Back Up Flights
Powered Rolls Adjustment
Motor: 125HP DC

Motorized Belt Conveyor
Length Measuring Roll
Mechanical Shear
Air Clutch and Brake
Motor: 10HP
Thickness Capacity: 1/4"
Motorized Exit Belt Conveyor

Sheet Stacker
Sheet Length: 14'
Air Stacking System
Driven Stacking Conveyor
Driven End Conveyor

Electrics, Hydraulics, Controls, Spare Parts
