Make: Welty - Way
Material Width: 12" - 72"
Material Thickness: .020" - .062"
Coil Weight: 40,000Lbs
Coil ID: 19" - 23"
Coil OD: 64"
Speed: 100 feet per minute
Direction: R - L
Floor Standing Coil Car
V-Type Saddle
Powered Lift and Traverse

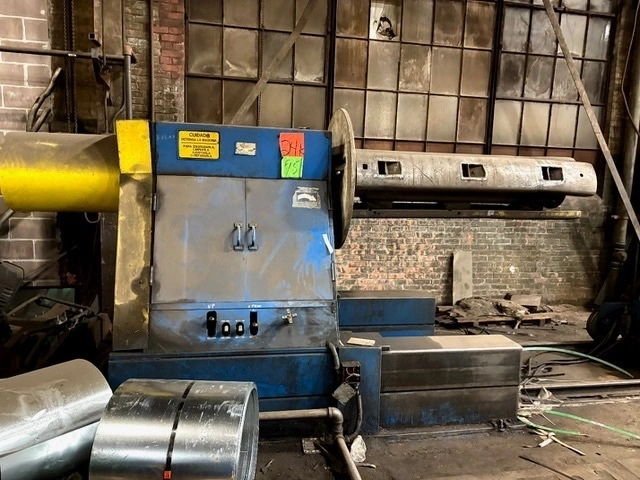

Mandrel Uncoiler
3-Leaf Expandable Mandrel
Powered Hold - Down Roll
Feed Up Motor
Main Slear Unit
Entry Driven Pinch Rolls
Entry Edge Guides
Parallel Arbor Adjustment
6-Roll Straightening Machine
Work Rolls Diameter: 5"
Manual Handwheel Adjustment
Flying Shear
Down Cut Air Cylinder
AC Motor Drive
Sheet Stacker
Max Length: 12 feet
Weight Capacity: 10,000Lbs
Scissors Table with Dividers
Powered Roller Conveyor
Powered End Conveyor
Main Operating Control Panel
Electrics: 480 / 3 / 60
