76mm x 4mm DMC HF Tube Mill,, New in 2022

Make: DMC Tech (Korea)
Year New: 2022
Tube Diameter: 27mm - 76.3mm
Wall Thickness: 1mm - 4mm
Coil ID: 508mm - 610mm
Coil OD: 1200mm - 2020mm
Coil Width: 80mm - 240mm
Tube Length: 4000mm - 10000mm
Line Speed: 25 - 130 meters per minute
Power: 220V / 380V

Floor Standing Coil Car
Hydraulic Lift & Traverse
Control Panel

Double Mandrel Uncoiler
Coil Weight: 5,500kg
Powered Hold Down Roll
Powered Mandrel Expansion
Powered Rotation
Hydraulic Peeling table

Shear & End Welder

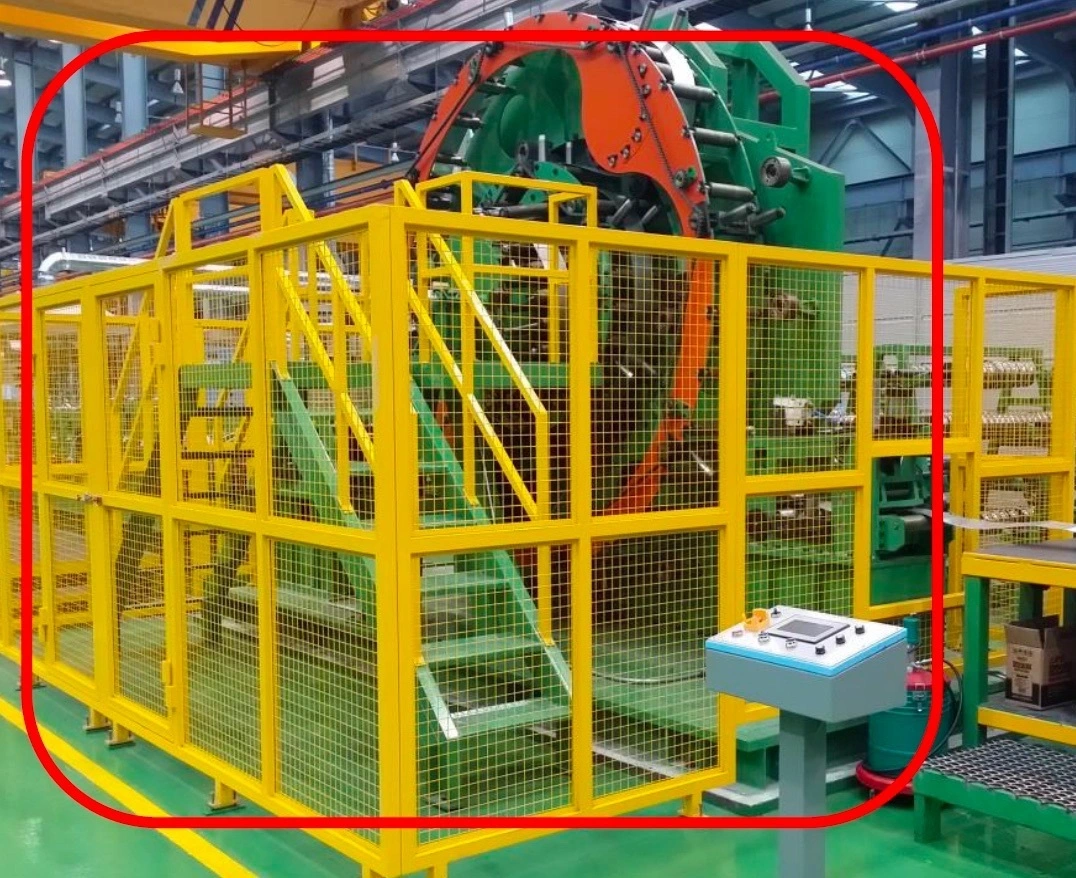

Vertical Coil Accumulator
Coil Straightening Machine
Driven Pinch Rolls

Forming Mill
Guide Rolls: 1 Set
Side Guide Rolls: 2 Sets
Forming Stands: 4 Sets
Forming Side Closter: 5 Sets
Fin Passes: 3 sets
Fin Pass Side Clusters: 2 Sets
Seam Guide: 1 Set
Driving Gear Boxes
Speed Change Gear Box
90Kw DC Motor Drive

Welding Section
350Kw High Frequency Welder
Adjustable Squeeze Rolls
Rolls Diamater: 50mm / 140mm
Bead Rewinder
Extended Cooling Section
Emulsion Cooling System

Sizing Mill
Sizing Stands: 5 Sets
Sizing Side Rolls: 4 Sets
Single Turk Head: 2 Sets
Measuring Rolls: 1 Set
Driving Gear Boxes
Speed Change Gear Box
75Kw DC Motor Drive

Cut-Off Section
Flying Cold Saw Type
Traverse Length: 3,500mm
Traverse Drive: 32Kw AC Servo
Blade: 450mm Dia
Cut Off Drive:11Kw & 9Kw
PLC Saw Controls
Driven Run Out Table
Driven End Table

Complete Fully Automatic Packaging Line

Electrics, Hydraulics, Controls, Tooling
