2024 127mm x 6mm Aydin HF Tube Mill

Pipe outside diameter : Ø 48-127
Square profile range : 40x40 – 100x100 mm
Rectangular profile range : 50x30 – 150x50 mm
Tube thickness : 1.50 – 6.00 mm
Tube length : 4-12 meter
Material
Coil type : HRC – CRC - HDG
Tensile Strength : 620 N/mm2 - MPa
Yield point : 355 N/mm2 – Mpa
Strip width : Max 400 mm
Production tolerances
OD tolerance : ± 0.15 mm
Accuracy : 1mm ; at 1 meter/length
Length Tolerance : - 0 / + 1 mm
Coil sizes
Coil OD : Min 1000, Max 2000mm
Coil ID : Min 508 mm - Max 610mm
Accumulator speed : 150 meter/min
Line speed : 80 meter/min
Line direction : Right to Left
Line Height : 1100 mm (Height from ground of line axis)
Power Supply voltage : 380 V /3 phase/ 50 hz
Strip weight : 10,000 kg
Air temperature : -15°C /+ 45 °C
Compressed air pressure : 5-7 kg/cm², 1000 l/min
Hydraulic oil pressure : 120 bar / 80 – 130 kg/cm²
HF Solid state welder : 400 kw
Form group motor : 90 kw AC
Finn-pass motor : 90 kw AC
Accumulator power : 82.5 kW
Caliber group motor : 160 kw AC
SAW : 51,8 kw
Vertical Stand Up&down : 1.1 kw (11)
Stowing : 2.2 kw (3)

MAIN COMPONENTS

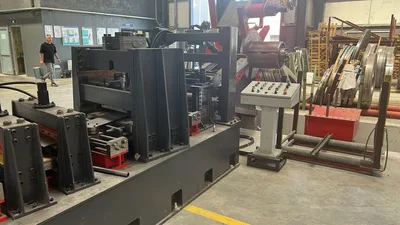

1. Strip Uncoiler

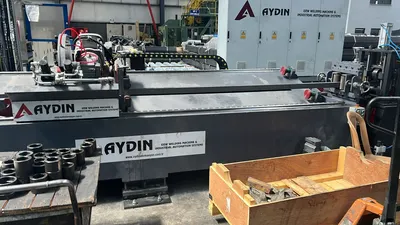

2. Crop and Strip Joining Group

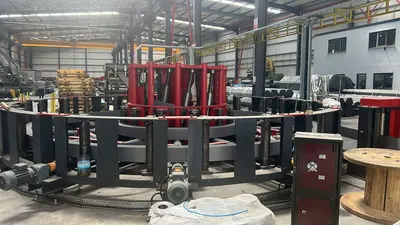

3. Horizontal Strip Accumulator
4. Strip Entry Leveling

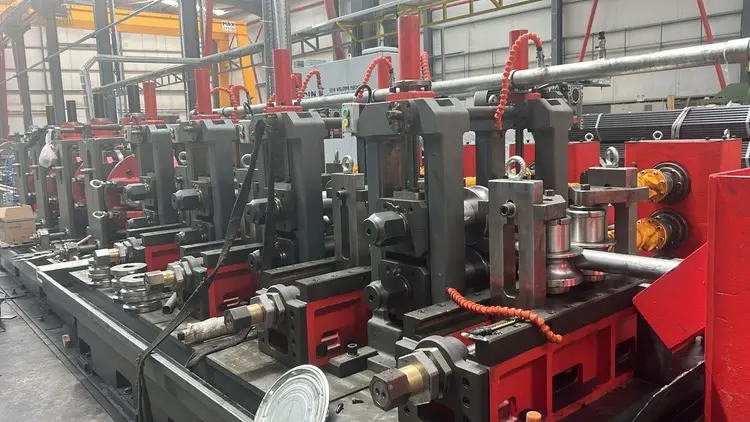

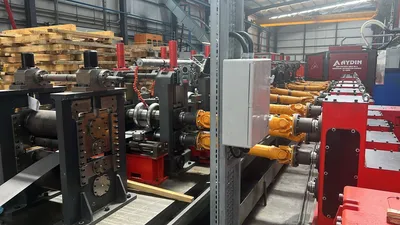

5. Forming Group
6. Guiding Rolls/Seam Guide
7. Welding Group and Chip Removing
8. H.F Solid State Welding Machine
9. Cooling Tunnel

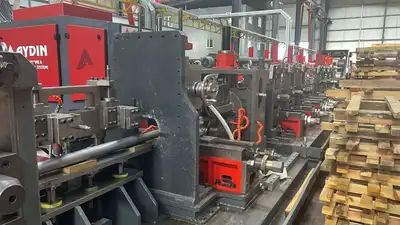

10. Calibration /Sizing Group

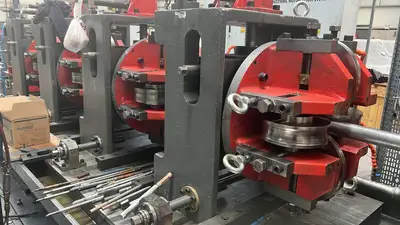

11. Turk’s Heads (Profiling-Straightening Group)
12. Cold Saw Group

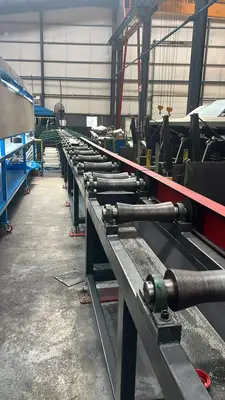

13. Stowing

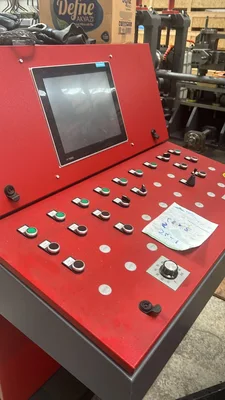

14. Electrical and electronic systems
15. Hydraulics
