Used DMC 63mm x 3.5mm DMC HF Tube Mill | Tube Mills

Make: DMC Tech (Korea)
Year New: 2018
Tube Diameter: 15mm - 63mm
Wall Thickness: 1mm - 3.5mm
Coil ID: 508mm - 610mm
Coil OD: 1200mm - 2020mm
Coil Width: 68mm - 200mm
Tube Length: 4000mm - 10000mm
Line Speed: 25 - 120 mpm
Power: 220V / 380V

Material Storage
Three (3) Coils Capacity

Floor Standing Coil Car
Hydraulic Lift & Traverse
Control Panel

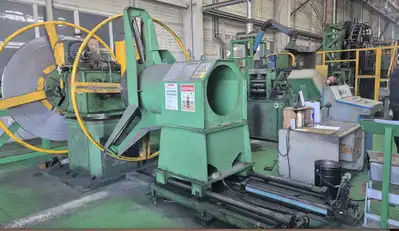

Double Mandrel Uncoiler
Powered Hold Down Roll
Powered Mandrel Expansion
Powered Rotation

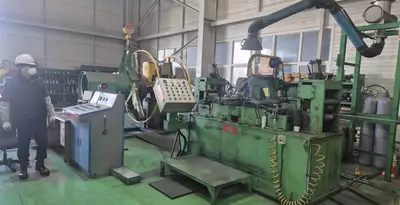

Shear & End Welder

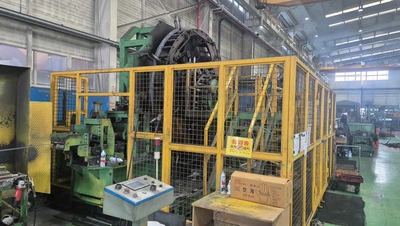

Horizontal Coil Accumulator
Coil Straightening Machine
Driven Pinch Rolls

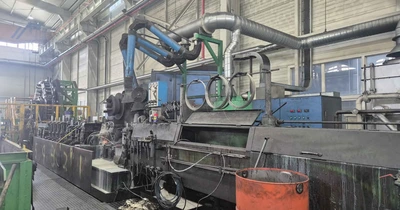

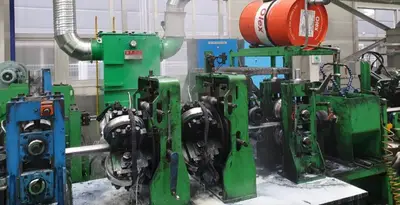

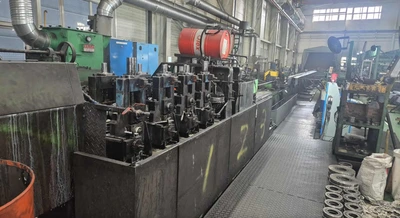

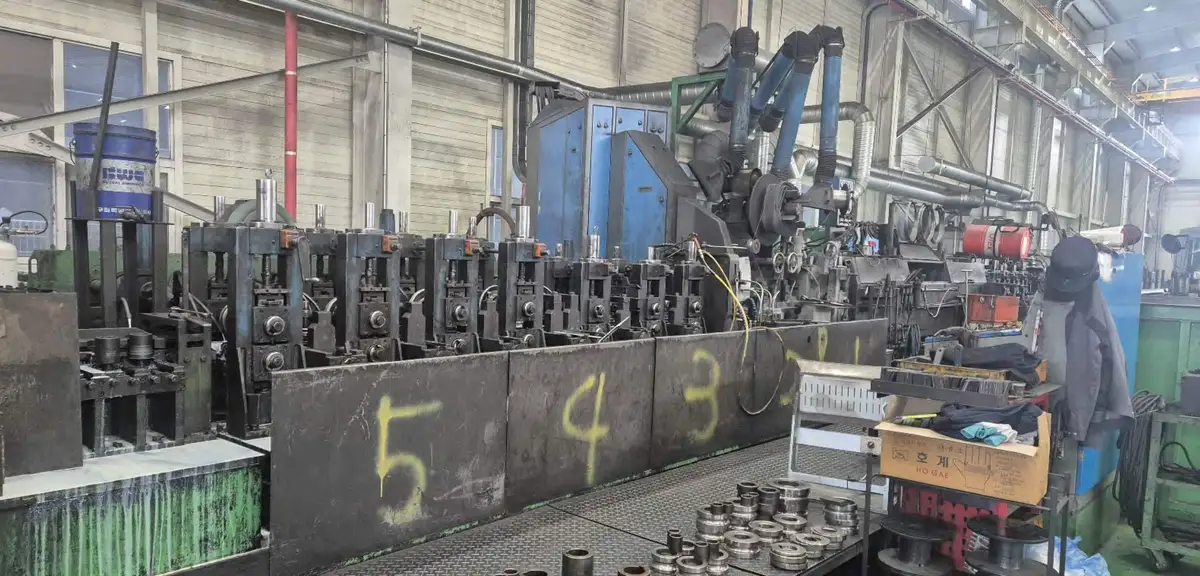

Forming Mill
Driven Breakdown Stands
Idle Side Stands
Driven Fin Pass Stands
Individual Gear Boxes
Universal Drive
75Kw DC Motor Drive

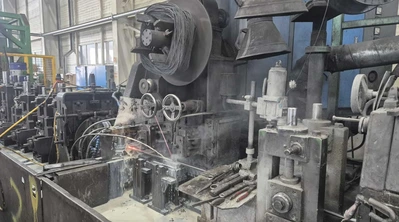

Welding Section
250Kw High Frequency Welder
Adjustable Squeeze Rolls
Bead Rewinder
Extended Cooling Section

Sizing Mill
Driven Sizing Stands
Idle Side Stands
Adjustable Turk Heads
55Kw DC Motor Drive

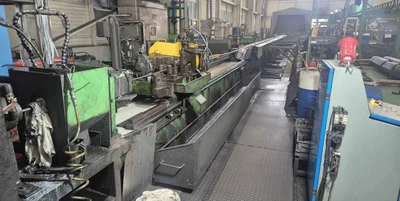

Cut-Off Section
Flying Saw Cut Off Saw
Flying Cold Saw Type
Traverse Length: 4,000mm
Traverse Drive: 32Kw AC Servo
Blade: 400mm Dia
Cut Off Drive: 9Kw & 7Kw

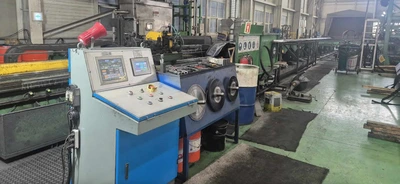

PLC Saw Controls
Driven Run Out Table
Driven End Table

Complete Semi Automatic Packaging Line

Electrics, Hydraulics, Controls, Tooling
