Used PRO-ECO 60" x .250" x 40,000Lb Pro - Eco Loop Slitting Line | Slitting Lines

Make: Pro - Eco / Paxson
Material Width: 12" - 60"
Material Thickness: .060" - .250"
Weight :40,000Lb
Coil ID: 20" - 24"
Coil OD: 72"
Direction: Left to Right

Entry 4 - Arm Turnstile
Powered Rotation
Bolted Arms

Entry L-Type Coil Car
Powered Lift and Traverse
Self Contained Hydraulics

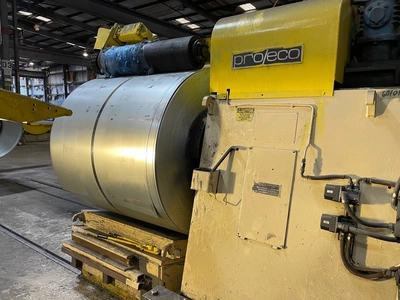

Mandrel Uncoiler
Powered Hold - Down Roll
Hydraulic Expansion
Sliding Base
20HP Feed Up Motor
Water Cooled Brake

Hydraulic Peeling Table

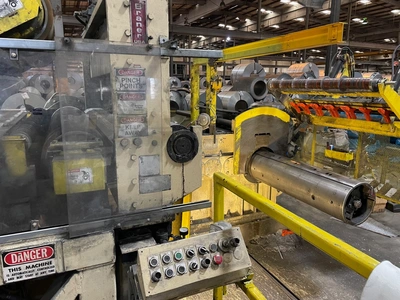

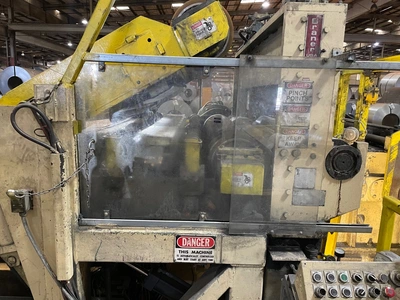

Driven Entry Pinch Rolls
Adjustable Edge Guides

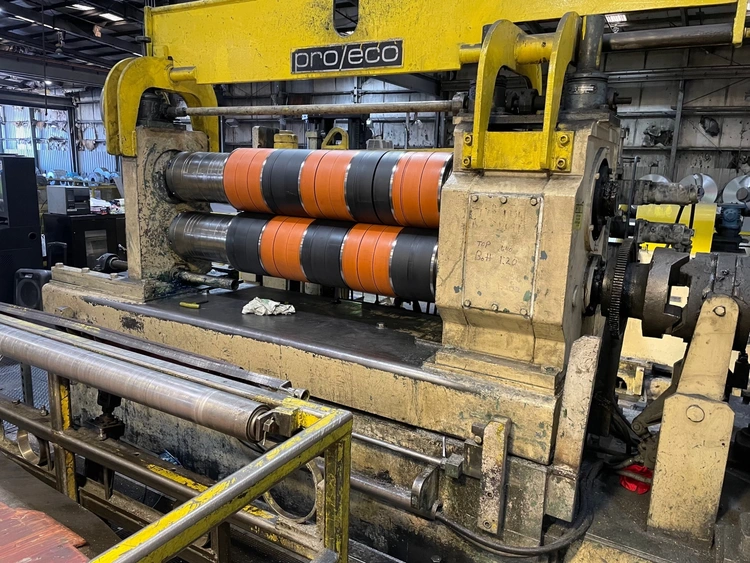

Two (2) Slitting Heads
Arbor Diameter: 9"
Crane Removable Design
Powered Arbor Adjustment
50HP DC Motor

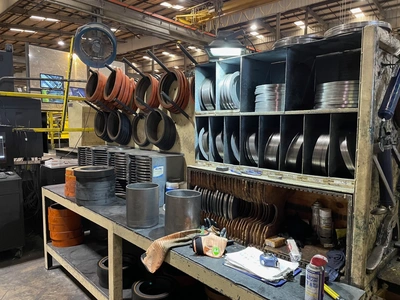

Knives and Tooling

Pit Cross Over Table

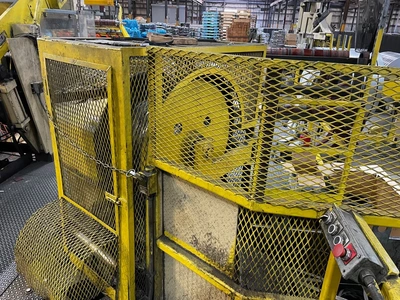

Two (2) Heavy Duty Hydraulic Scrap Winders

Braner Rotary Tension Stand
Water Cooled Brake
Strip Separating Bar with Tooling

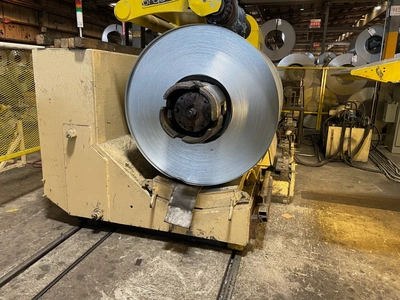

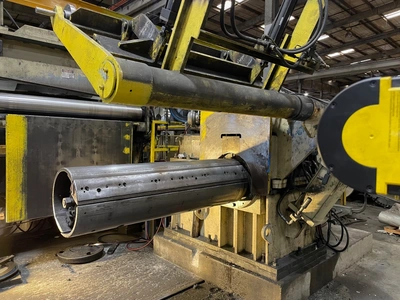

Recoiler
Hydraulic Drum
Powered Over-Arm Separator
Hydraulic Coil Push-Off
Motor: 100HP 650 / 1950 RPM

Exit L-Type Coil Car
Hydraulic Lift and Traverse
Self Contained Hydraulics

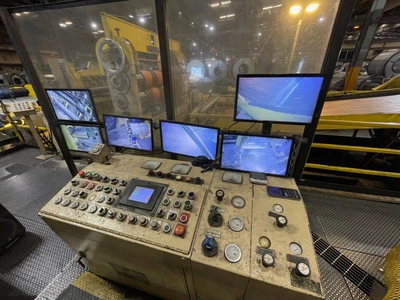

Electrics, Hydraulics, Controls, Knives & Tooling
