Used BRANER 72" x .187" x 50,000Lb Braner Loop Slitting Line | Slitting Lines

Make: Braner
Material Width: 12" - 72"
Material Thickness: .020" - .187"
Coil Weight: 50,000Lb
Coil ID: 20" - 24"
Coil OD: 72"
Direction: R-L

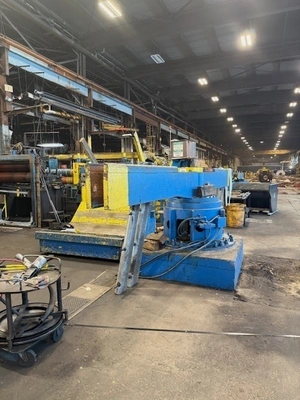

Entry Turnstile
Powered Rotation

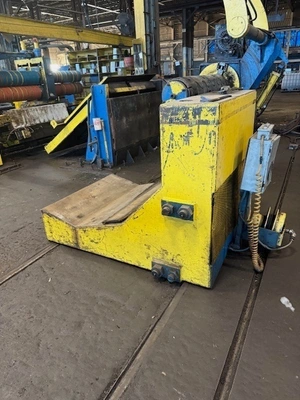

Entry L-Type Coil Car
Hydraulic Lift and Traverse

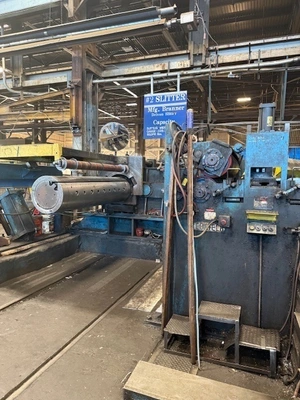

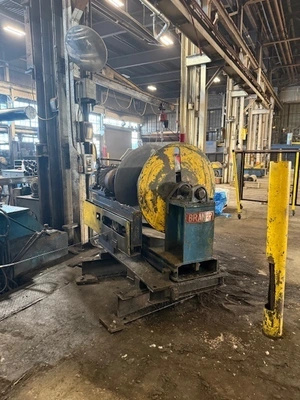

Mandrel Uncoiler
Powered Hold - Down Roll
Hydraulic Mandrel Expansion
Air Cooled Brake
Feed-Up Motor
Sliding Base
Hydraulic Peeling Table

Driven Entry Pinch Rolls
Adjustable Edge Guides

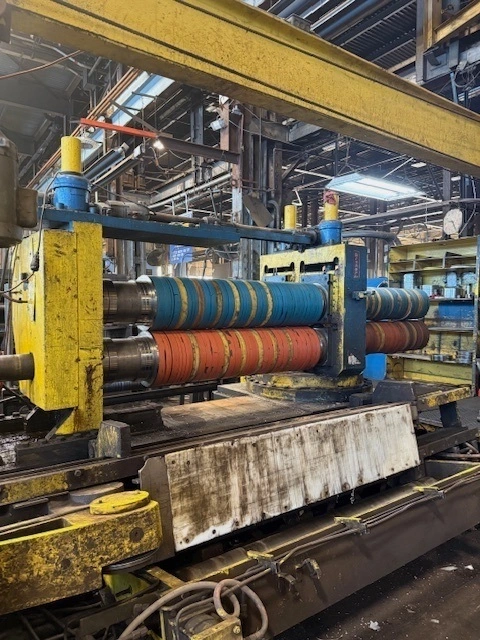

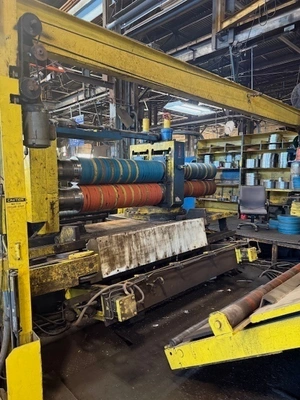

Two Slitting Head
Turret Type Slitter Base
Arbor Diameter: 9"
Powered Head Rotation
Powered Arbor Adjustment
Motor: 100HP DC
Pit Cross Over Table

Two Scrap Winders
Powered Open / Close
Heavy Duty Design

Tension Stand
Combo Tensioning Design
Pneumatic Tension Pads
Coated Tension Rolls
Wichita Tension Brake

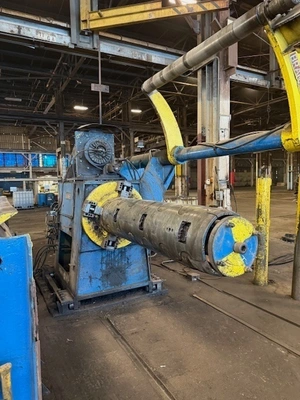

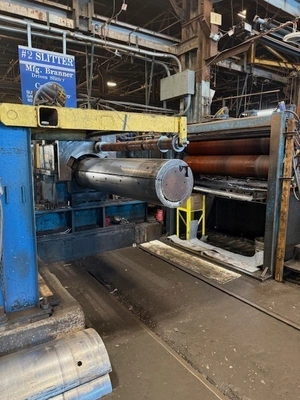

Recoiler
Powered Gripper
Hydraulic Over-Arm Separator
Powered Push-Off
Motor: 250HP DC

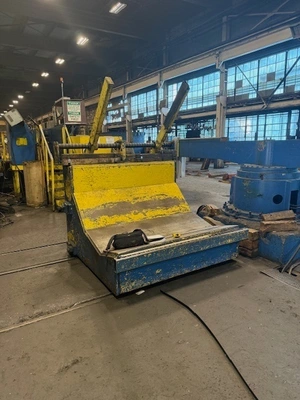

Exit L-Type Coil Car
Hydraulic Lift and Traverse

Exit 2-Arm Turnstile
Powered Rotation

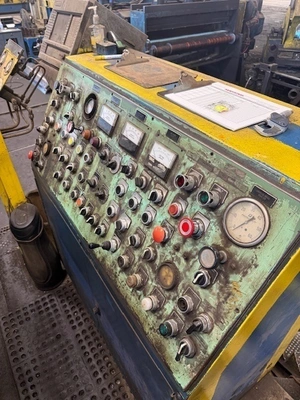

Electrics, Hydraulics, Controls, Knives and Tooling
