Used 1997 Kangwan 168mm x 8mm HF Tube Mill | Tube Mills

Make    Hangwan san ki  Korea
Capacity            Round pipe-76.3Ømm ~ 168.3Ømm x 8.6mmt
Sq. pipe - 50mmx450mm ~ 200mmx100mm x 8.6mmt
Strip dia.           ID-508Ømm , OD-1,800Ømm
Line speed        80m/min

Equipment  composition

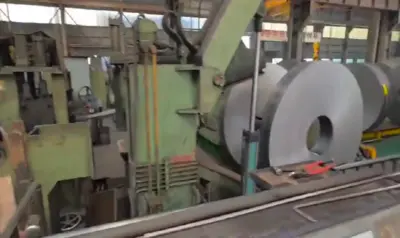

Entry part         Coil car
Uncoiler Max. weight      12,000kg
Snubber & coil coener
Pinch & Leveller Pinch roll-180Ømmx600Lmm, side roll-120Ømmx140Lmm,Leveller-120Ømmx600Lmmx7ea.
AC11kw
Shear & welding CO2 welding, knife -1ea
Looper section   inlet pinch roll-4roll

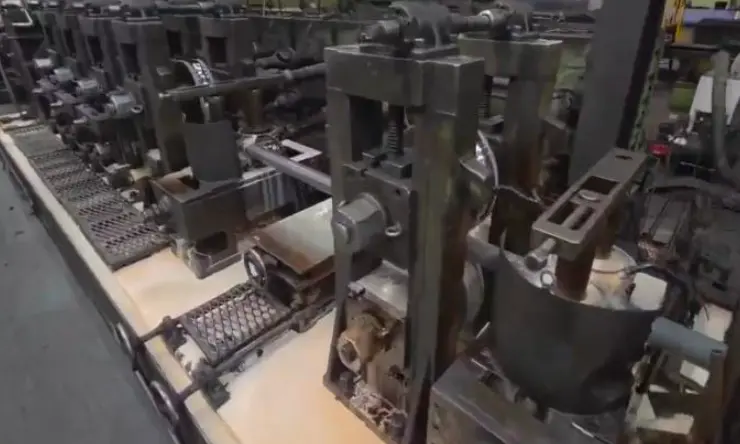

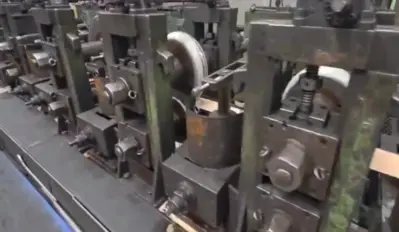

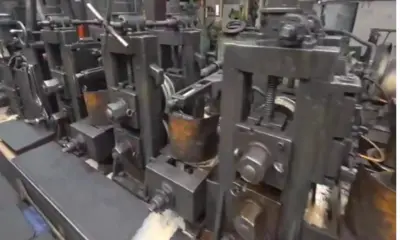

Forming device  Drive roll-8sets,             5sets-DC110kw, 3sets-DC90kw
Side roll stand-7sets       Welding m/c            450kw
Outside bead cutter-2sets
Cooling unit
Sizing section    Driver motor-132kw
Driver roll stand
Side roll stand
Strighting m/c   1 stage 4roll
Flying cut-off m/c          Saw rotation motor-DC75kw, driving motor-servo AC30kw

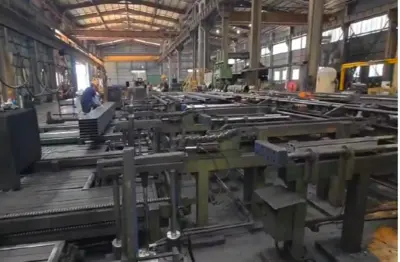

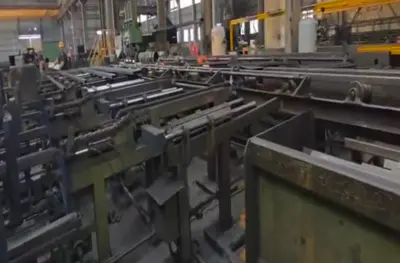

Run out table    18m
Double conveyor            Motor & Hyd. Unit
Straighting m/c  Cross roll type
Capacity            76.3Ømm ~ 168.3Ømm x 2.4~8.6mmt
Speed   40~80m/min.
Driver   AC37kw
END facing m/c Capacity            76.3Ømm ~ 168.3Ømm x 2.4~8.6mmt
Speed   10pcs/hr.
Faceing head     15kw
Working beam driver      DC22kw
Electric panel & Desk
Eddy current detector    6.3Ømm ~ 168.3Ømm (3"~6")
Gas exhaust device
Oil tank
Auto marking m/c
Hoist    10tonx2sets, 5ton 2sets
Defect detection device
