Used LOOPCO 60" x .135" x 40,000Lb Loop Slitting Line | Slitting Lines

Width: 60"
Weight Capacity: 40,000#
Coil I.D. Entry: 20" - 24"
Coil I.D. Exit: 20"
Line Speed: 300 and 600 FPM
Line Direction: Left to Right

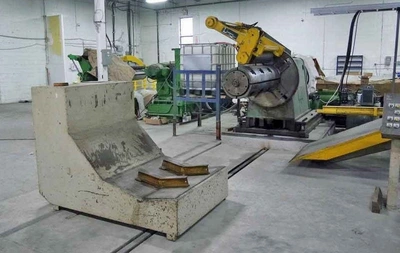

Loopco "L" Type Coil Car:
Self-Contained Hydraulic Power Unit
Hydraulic Motor Travel

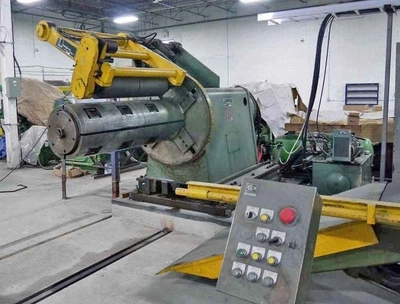

Loopco Mandrel Uncoiler:
Hydraulic Expansion
Powered Overarm Holddown Roll
Sliding Base
Water Cooled Brake
Feedup Drive

Loopco Entry Unit:
Peeler Table
Driven Pinch Rolls
Roller Side Guides

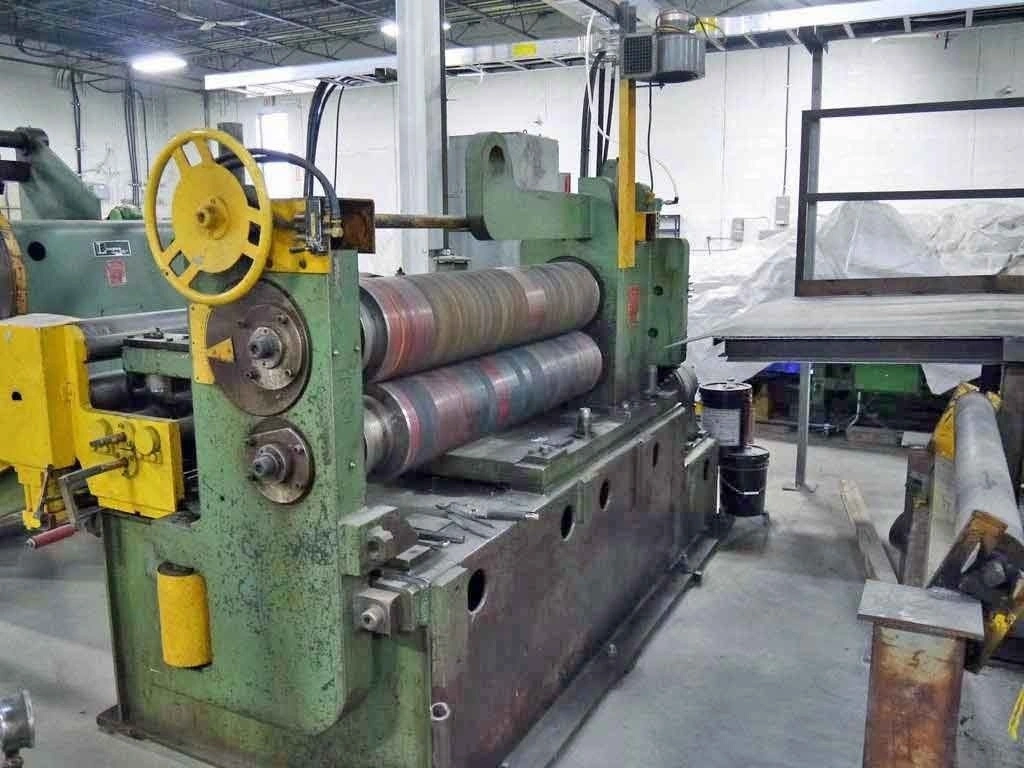

Loopco Slitter Head:
Swinger" Design
Removable Head
7" Dia. Arbors
Single Eccentric Arbor Adjustment
AC Gear Motor Threading Drive

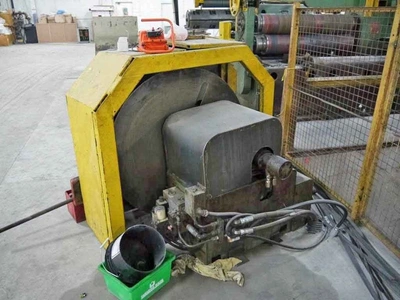

(1) Scrap Winder:
Hydraulic Motor Drive

Pit Cross Over Table:

Loopco Drag Board Tension Stand:
Air Bag Tension Type
Exit Driven Pinch Rolls

-Cross Over Table to Recoiler:

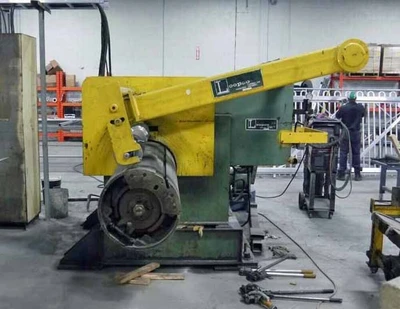

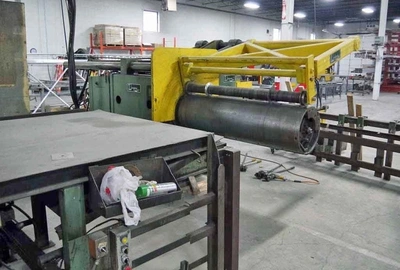

Loopco Recoiler:
20" Dia. Drum
Hydraulic Expand & Grip
Overarm Separator
2 Speed Reducer w/34.34:1 & 17.17:1 Ratios
75 HP DC Motor, 650 - 2000 RPM, 500 V

2 Arm Turnstile:
Powered Rotation

Slitter Tooling and Tooling Cart:

Hydraulic Unit:

Controls:

Line is Installed
