Used MYUNG JIN 114mm x 9mm HF Tube Mill | Tube Mills

Type: Round, Square, Rectangular
Diameter: 34mm - 114mm
Square: 25 x 25 - 90 x 90
Rectangular: 40 x 20 - 100 x 50
Wall Thickness: 1.2mm - 9mm
Pipe Length: 4.5m - 12m
Line Speed: 100 mpm
Coil ID: 508mm
Coil OD: 1200mm - 2200mm
Coil Width: 105mm - 360mm
Max Weight: 5 ton
Welder: Thermatool 250Kw Solid State
Electricity: 380V / 60Hz / 3 Phase

Coil Loading Station
Coil Car
Mandrel Uncoiler

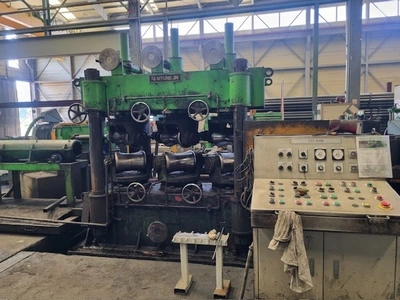

Pinching and Leveling
End Shearing
Strip Joining

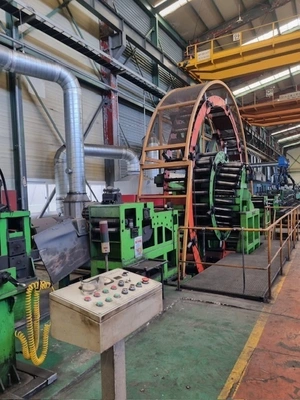

Vertical Accumulator

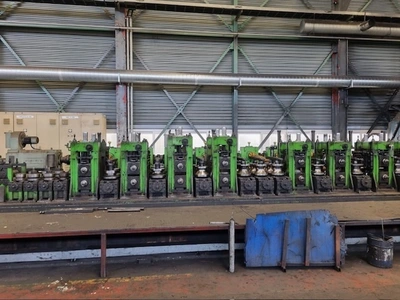

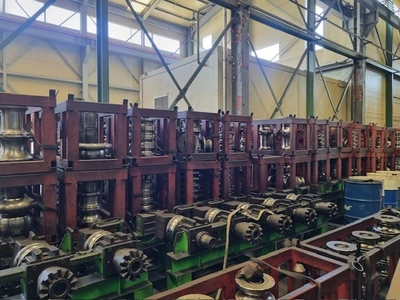

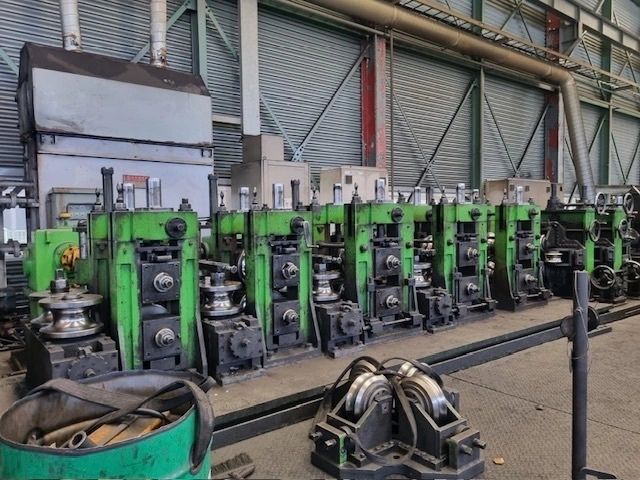

Forming Mill

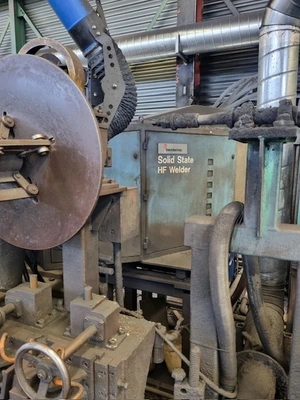

High Frequency Welder
ID and OD Bead Removal
Water Cooling Section
Sizing & Straightening Section
Cut Off Section
Powered Run Out Conveyor
Packaging Line
Eddy Current Test
End Facing and Chamfering Machines
Straightening Machine

Tooling List and Additional Information are Available per Request
