Used FAGOR 1550mm x 10mm x 25 ton CTL Line | Cut to length Lines

Make: Taci Fagor (Spain)
Type: Stop / Start
Material Width: 300mm - 1500mm
Material Thickness: 2mm - 10mm
Coil Weight: 25 ton
Coil ID: 508mm - 760mm
Coil OD: 2000mm
Direction: Left to Right

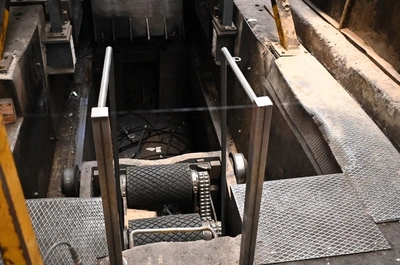

Entry Coil Car
Pit Type Design
Powered Lift

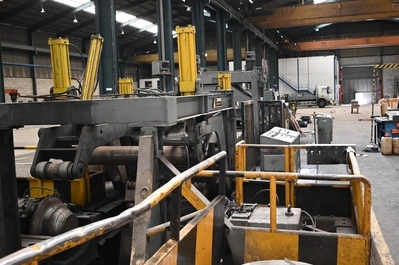

Dual Cone Uncoiler
Powered Hold Down Roll
Sliding Base / Feed Up Motor
Peeling Table
Driven Pinch Rolls

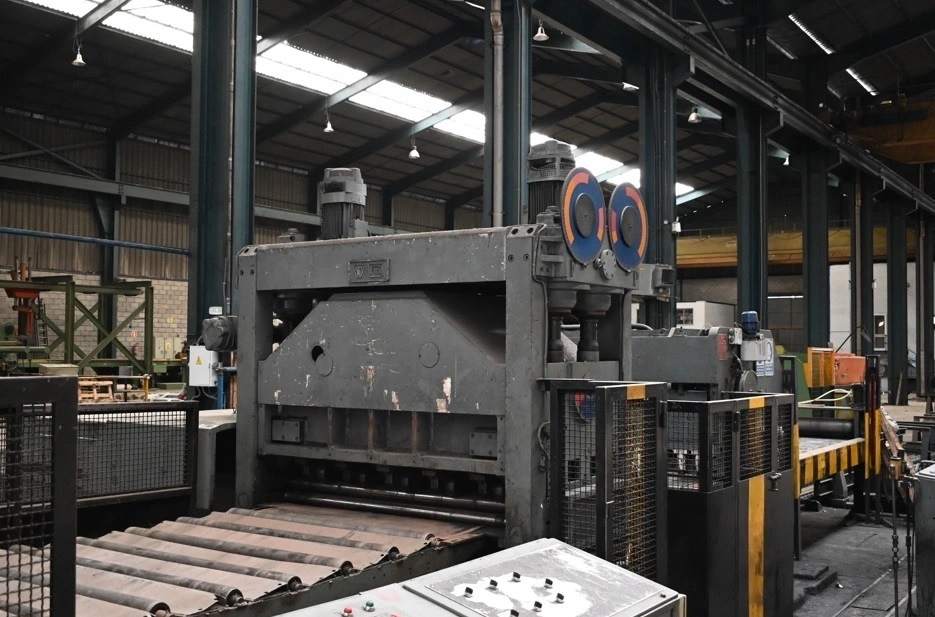

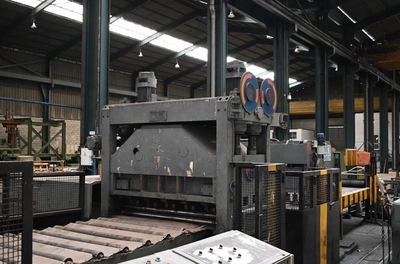

Corrective 4-Hi Leveler
Work Roll Diameter: 75mm
Number of Work Rolls: 15
Back Up Rolls Size: 120mm
Powered Rolls Adjustment
Speed: 20 meters per minute
Motor: 75HP DC

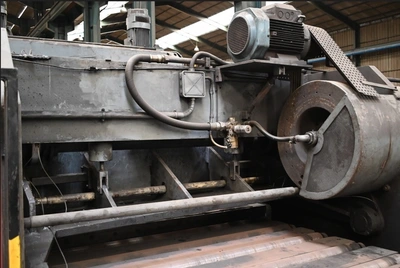

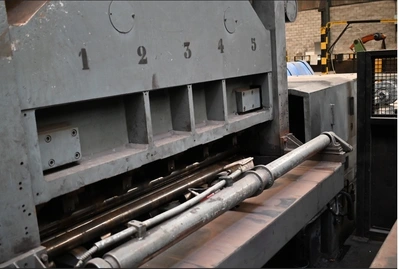

Mechanical Shear
Cutting Length: 1000mm - 10,000mm
Air Clutch and Brake
ABB 25HP 3000 RPM Motor
Fagor Digital Length Control
Driven Entry and Exit Conveyors

Sheet Stacker
Drop Type Stacking System
Driven Stacking and Exit Conveyors

Electrics, Hydraulics, Controls, Drawings
