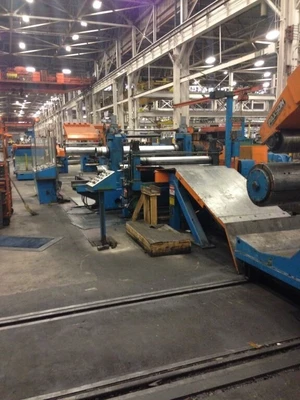

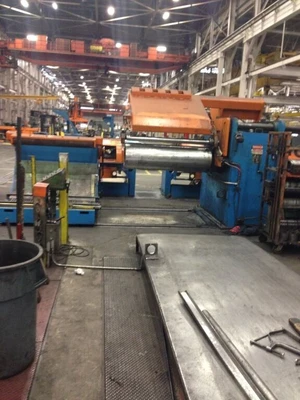

Used PAXSON 60" x .250" x 40,000Lb Paxson Slitting Line | Slitting Lines

Manufacturer: Paxson

General Specifications:
Material: HRS, CRS, HRPO, Galvanized / Maximum Strength: 50,000 PSI Shear, 40,000 PSI Yield
Thickness: .015" - .250"
Coil Weight Capacity: 40,000 lbs.
Coil Width (Maximum): 60" Trimmed, 62" Untrimmed
Coil I.D.: Entry: 20" - 24" / Exit 20"
Coil O.D.: Entry: 42" - 72" / Exit: 42" - 72"
Line Speed: Two-Speed, 130 and 390 FPM @ bare drum
Line Direction: Right to Left
Mode of Operation: Pull-Thru & Drive Assist

Complete with the Following Components:

2-Arm Entry Turnstile:
• S/N 11702-50
• Power Rotation

Entry Coil Car:
• S/N 11700-1
• L-Type
• Self-Contained Hydraulic Power Unit
• Hydraulic Lift & Travel

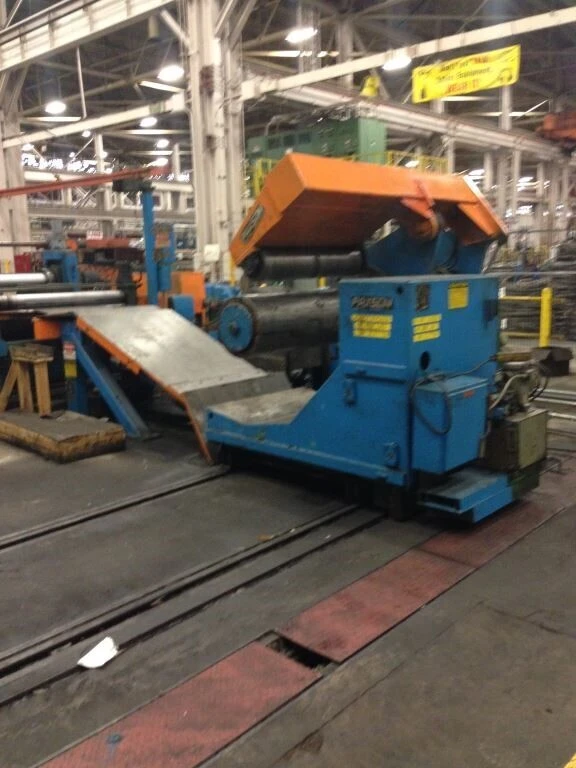

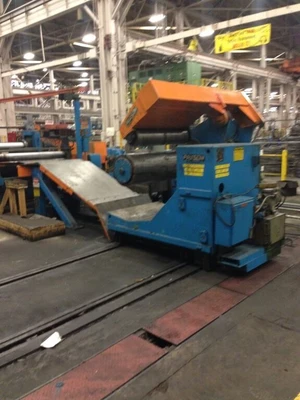

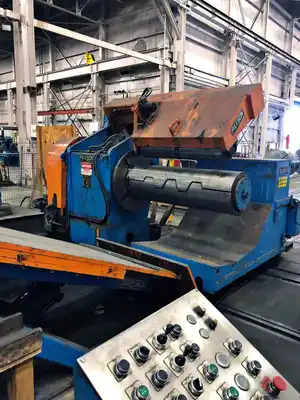

Uncoiler:
• S/N 11700-3-4-82
• Hydraulic Expansion: 20" - 24"
• 4-Segment Pumpkin Tooth Mandrel
• Powered Overarm Hold-Down
• Slide Base
• Hydraulic Motor Feed-up
• Water Cooled Brake

Hydraulic Peeler Table
• S/N 11700-2-3-82

Slitter Entry Unit:
• S/N 11700-4-3-82
• Driven Pinch Rolls
• Independent Manual Adj. Roller Side Guides
• Roller Crop Shear

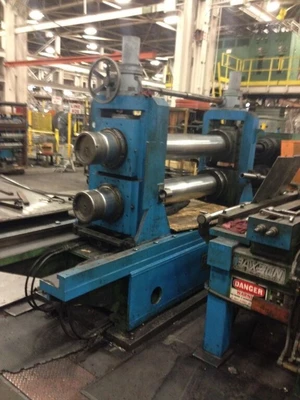

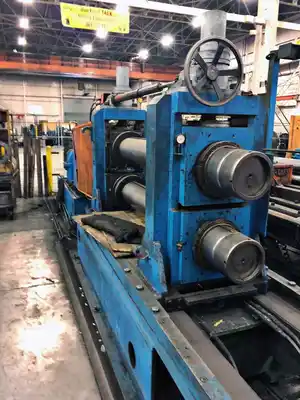

Slitter Head:
S/N 11700
• Removable Type, (1) Head
• Over Arbor Outboard - Can Travel up to 36" Wide
• Arbors: 10" Diameter
Stand Slides in for Smaller Widths
Hydraulic Lift Table for Threading

Slitting Drive
S/N 117001
150 HP DC Motor, 1750/2000 RPM, 500 V
Reducer w/60.7:1 ratio
Pinion Stand

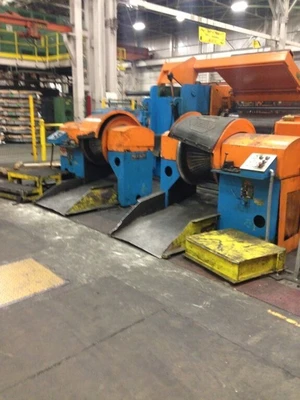

(2) Heavy Duty Scrap Winders:
• S/N 11700-9-3-82
• Opposed Cones
• Level Wind
• Auto Dump
• Hydraulic Motor Drive

Recoiler:
• S/N 11700-7
• Face Drum: 20" Dia. x 65"
• Hydraulic Grip & Expand
• Overarm Separator

Recoiler Drive
S/N 11700-8
100 HP DC Motor 650/1950 RPM, 500 V
Integral Reducer w/24:1 ratio
2 Speed Drive-All Transmission w/1:1 and 3:1 ratios

Exit Coil Car:
• L-Type
• Hold-down Arm
• Keeper Arms
• Strapping Slots in Base
• Self-Contained Hydraulic Power Unit
• Hydraulic Lift and Travel

12 Boxes of Knives, Spacers and Rubbers

2 Push Button Pulpits

1 Main Operator Control

1 Water Cooler
