1500mm x 2mm x 15 ton Huaye Multi Blanking Line with Recoiler

Material Width: 600mm - 1500mm
Maximum Thickness: 2mm
Coil Weight: 15 ton
Coil ID: 508mm
Coil OD: 1800mm
Number of Slitting Cuts: 6

Entry V-Type Coil Car
Powered Lift and Traverse

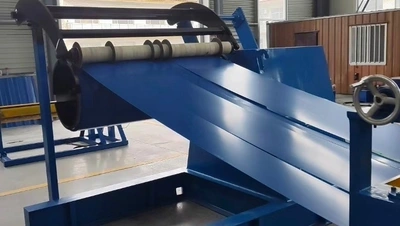

Mandrel Uncoiler
Powered Hold - Down Roll
Hydraulic Expansion
Electrical Brake
Feed Up Motor

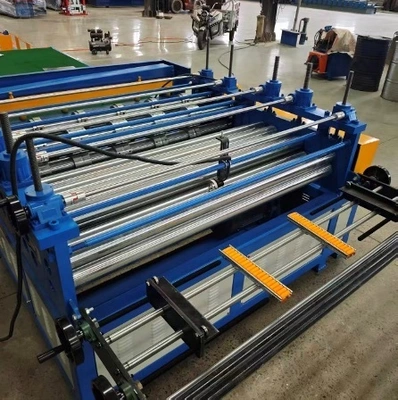

Coil Flattener
Work Rolls Diameter: 100mm
Number of Work Rolls: 13 (7/6)
Motor: 5.5Kw AC

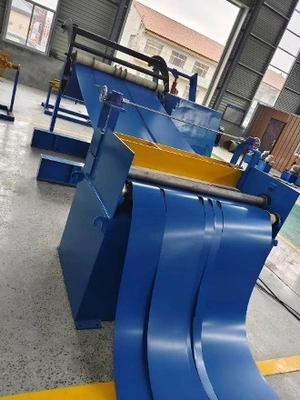

Slitting Head
Screw On Knifes
Max Number of Cuts: 6
Motor: 11Kw AC

Hydraulic Shear
Down - Cut Blade

Tension Stand
Pneumatic Pads
Strip Separating Bar
Exit Table

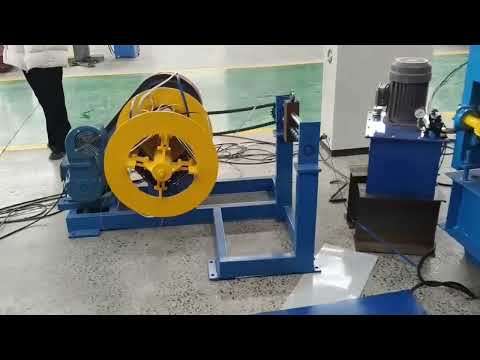

Recoiler
Powered Over-Arm Separator
Powered Gripper
Hydraulic Push-Off
Motor: 11Kw AC

Exit V-Type Coil Car
Powered Lift and Traverse

Electrics, Hydraulics, Controls, Tooling
