60" x .250" x 40,000Lb Cincinnati - McKay CTL Line

Material Width: 12" - 60"
Material Thickness: .020" - .250"
Coil Weight: 40,000Lb
Coil ID: 20"
Coil OD: 72"
Direction: Left to Right

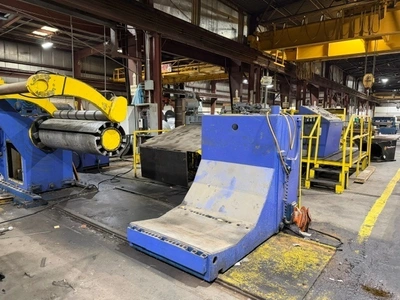

Cincinnati L-Type Coil Car
Hydraulic Lift & Traverse
Self Contained Hydraulics

Cincinnati Mandrel Uncoiler
Mandrel Width: 77"
Powered Hold - Down Roll
Sliding Base
Pneumatic Brake
Hydraulic Mandrel Expansion

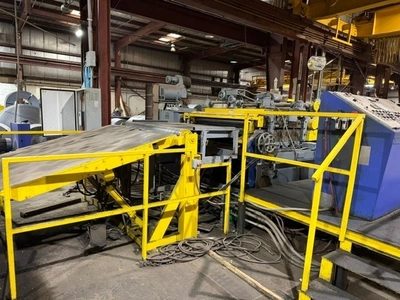

Hydraulic Peeling Table

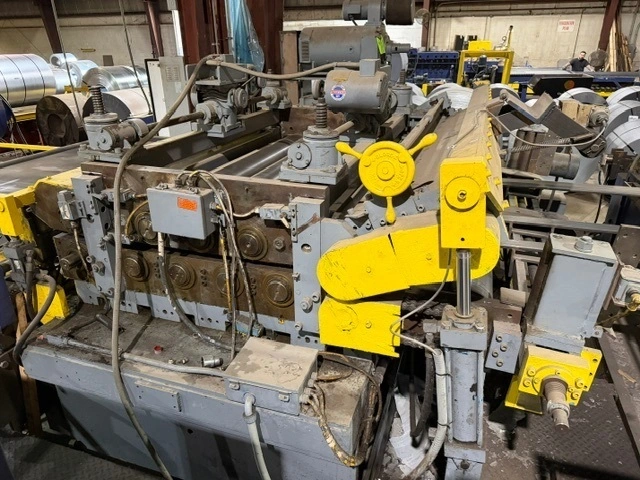

Coil Flattener
Seven (7) Work Rolls
Work Roll Diameter: 5"
Entry & Exit Pinch Rolls
Motorized Work Rolls Adjustment
Motor: 75HP / 1750 RPM

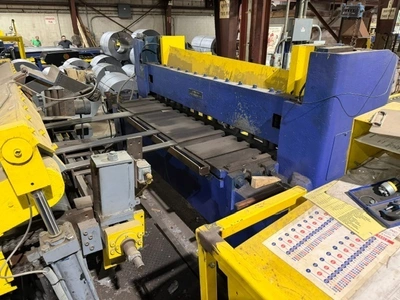

Niagara Mechanical Shear
Maximum Thickness: 3/8"
Air Clutch & Brake
30HP AC Motor

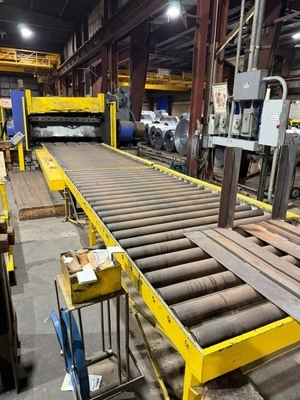

Exit Runout System
Powered Roller Conveyor
Run-Out Table with Driven Rolls

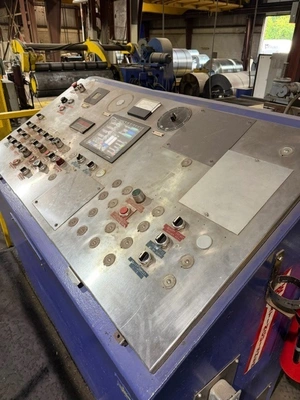

Electrics, Hydraulics, Controls, Spare Parts
