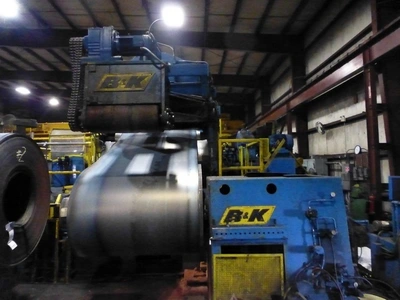

Used B & K 60" x .312" x 50,000Lb B & K Slitting Line | Slitting Lines

• Maximum Coil Weight: 50,000#
• Incoming Strip Width: 62"
• Outgoing Strip Width: 60"
• Minimum Strip Thickness: .035"
• Maximum Strip Thickness: .312"
• Incoming Coil ID: 19" to 20”, Up to 26" with Filler Pads (Nominal 20” ID)
• Outgoing Coil ID: 20" to 24", Up to 30” with Filler Pads (Nominal 20” ID)
• Maximum Coil OD: 76"
• Line Direction: Right to Left

Three Arm Turnstile, 60" Arms

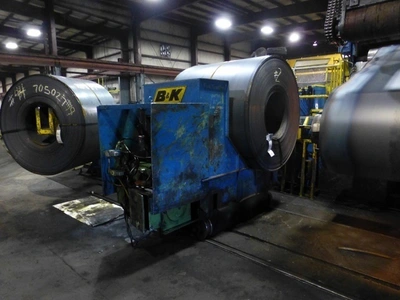

Coil Car
44" Wide Deck, 18” Vertical Lift
Self-Contained Hydraulics
Platform Top "V" Saddle
Coil Car Traverse 15' by Hydraulic Orbit Motor Chain & Sprocket

64" Wide Uncoiler with Heavy Duty Twin Hold Down Rolls
19” to 20” ID Coils with Filler Pads for Up to 26” ID (Nominal 20” ID)
Sliding Base ± 6” from Centerline, Air Clutch
AC Motor Feed and Recoiling
Water Cooled Air Brake

Peeler System, In/Out, Up/Down

Powered Pinch Roll System, 66” Face

Hydraulic Shear for Cropping Heads & Tails of Coils

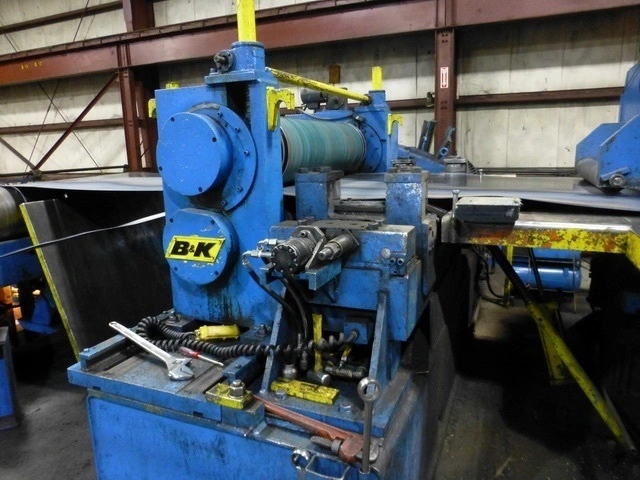

64" Wide x 10” Diameter Precision Arbor Slitter with Feed Up Drive, (2) Heads
Dog Clutch for Quick Head Removal

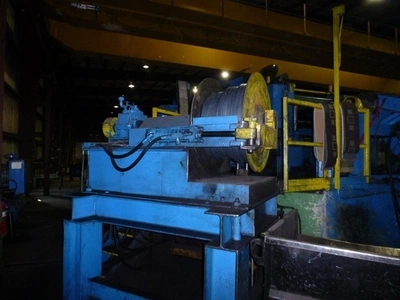

(2)-18” Wide x 42” OD Capacity Scrap Winders with Level Wind
Hydraulic Self Dump with Oscillating Eye

Hydraulically Actuated Threading Table

72" Wide Recoiler with Separator Shaft and Full Complement of Tooling
Two-Speed Gearbox
Hydraulic Gripper Slot
Heavy Duty Drum for 20” to 24” ID Coils with Filler Pads for Up to 30” ID (Nominal 20” ID)
150 HP DC 650/1950 RPM, 500V Reliance Motor (Modern)

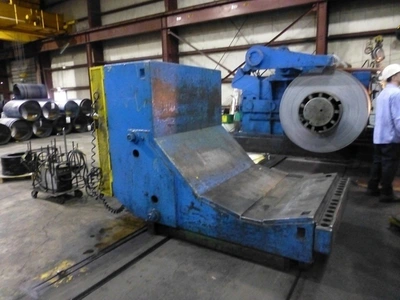

Exit Coil Car, 63" Wide Bed
Holding Finger Design for Narrow Slit Coils
60,000# Capacity Two-Arm Turnstile
Wide Slots for C-Hook Coil Removal or Hydraulic Push Off to Banding Line

3. Overarm Tooling
a. Full Complement of Shimless Tooling
4. Various Sized Rubber Stripper Rings

HYDRAULICS: Hydraulic pump and tank unit, 40 HP @ 1,000 PSI
