Used HERR-VOSS 74" x .500" x 60,000Lb Herr Voss CTL Line | Cut to length Lines

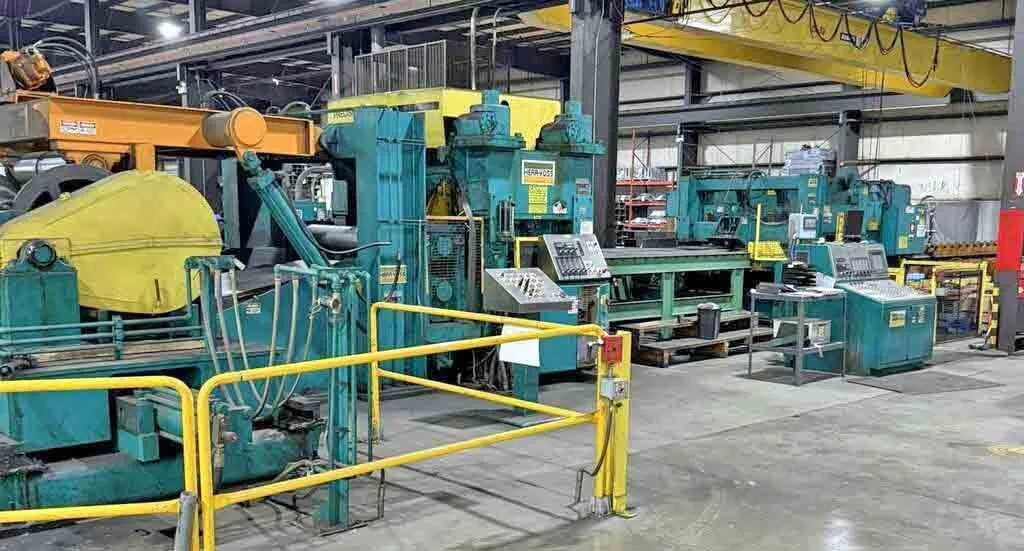

74" x 0.500" x 60,000# Herr Voss Cut To Length Line

Material Width: 36" to 74"
Coil Weight: 60,000 lbs.
Material Thickness: 0.075" to 0.500 (at 45,000 PSI Yield)
0.375" (at 80,000 PSI Yield)
Coil I.D. Range: 20" to 34"
Coil O.D.: 84" Max.
Jog Speed: 50 FPM
Line Speed: 20 to 175 FPM
Line Direction: Left to Right

-Entry Coil Ramp:
3 Coil Storage
Hyd. Lever-Type Holding Mechanism

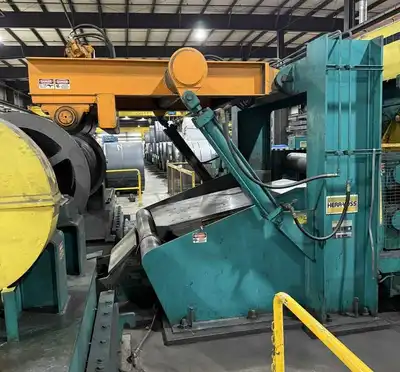

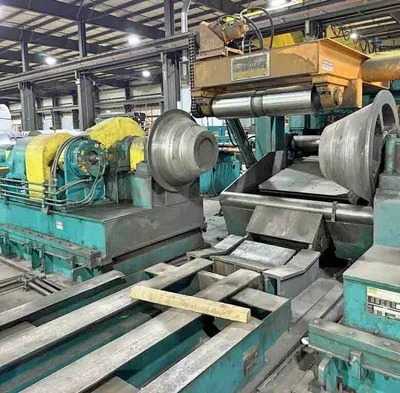

-Cone Type Uncoiler:
S/N: 44799-003
Motorized Feedup AC Motor and Air Clutch on one head
Wichita Water Cooled Brake on each head
Sliding Base on each head
Coil Lift with 12" Bore Hydraulic Cylinder

-Threading Unit:
Motorized Overarm Holddown Roll
Steel Roll powered by AC Motor
Hydraulic Actuated Peeler Table

-Entry Side Guides:
Powered Width Adjustment

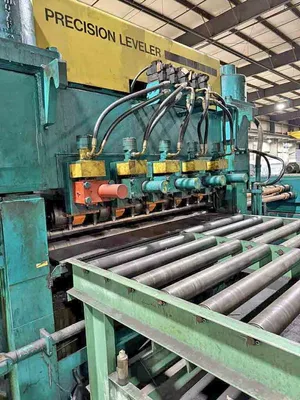

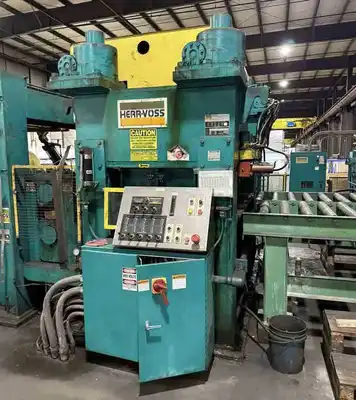

-Precision Leveler: 4 High
Keystone Model VKL 88/4.50-11/5 4 HI, LH
S/N: 44799-005
Thickness Range: 0.096" - 0.500"
11 Work Rolls
4.50" Dia. x 88" Face Rolls
5 Flights of Motorized Backups
200 HP Reliance DC Motor, 850/1700 RPM, 500 V

-Squaring Guides:
Powered Width Adjustment
(Will open to 80" Wide)

-Powered Tailout Pinch Rolls:
Hydraulic Cylinder Open & Close

-Measuring Unit:
Entry Encoder Roll

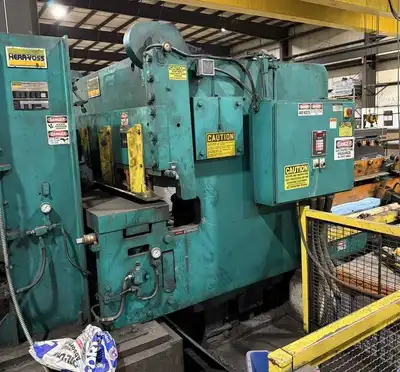

-Herr Voss Mechanical Shear:
Model: 0808
S/N: 44799-009
Blade Gap Adjustment Control
Straight Blade Rake
Material Holddowns
AC Motor

-Drop Type Stacker:
Side Guide Retainers with Powered Side Tap
40,000# Capacity
Min. Sheet Length: 24"
Max. Stacked Sheet: 24'

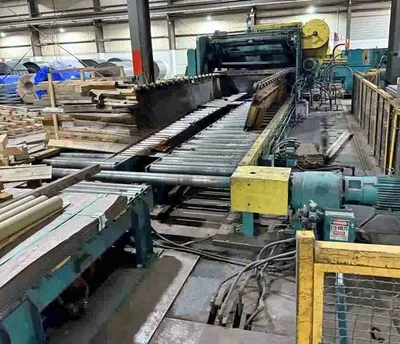

-Runout Conveyor:
40' Long

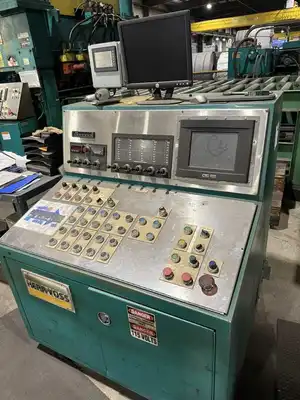

-Main Operators Control Panel:

-Main Hydraulic Power Unit:

-Includes Complete Mechanical and Electrical Drawings and
Operators Manual.
