Used STAM 1600mm x 3mm x 15,000kg Stam CTL Line with Recoiler | Cut to length Lines

Make: Stam Machinery (Italy)
Year: 1993 / Controls & PLC Refurbished in 2023
Material Width: 400mm - 1600mm
Material Thickness: 0.5mm - 3mm (Stainless Steel)
Coil ID: 508mm - 610mm
Coil OD: 1800mm
Sheet Length: 490mm - 6400mm
Direction: Left to Right

Entry 2-Arm Turnstile
Powered Rotation

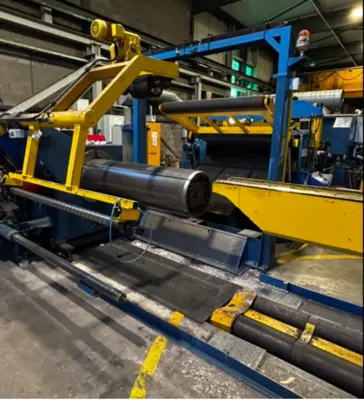

Entry Floor Standing Coil Car
Hydraulic Lift & Traverse

Mandrel Uncoiler
Powered Hold Down Roll
Sliding Base
Pneumatic Brake
Hydraulic Mandrel Expansion
Hydraulic Peeling Table

Driven Entry Pinch Rolls
Adjustable Coil Edge Guides

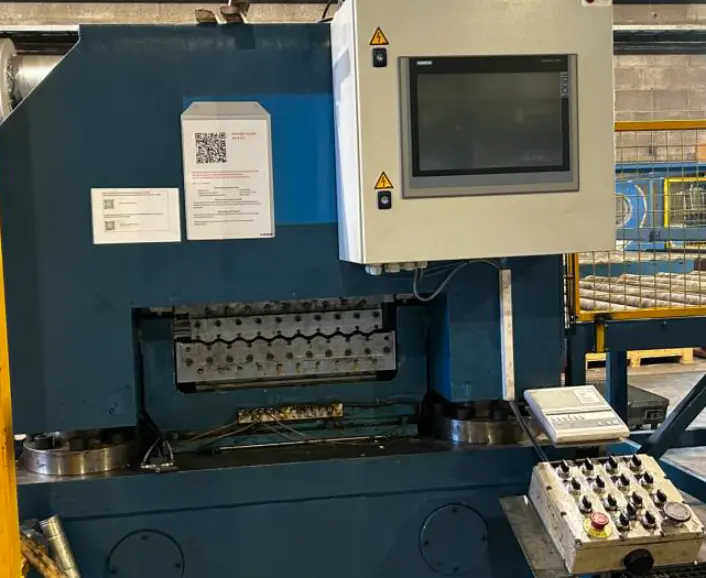

6-Hi Precision Leveler
Powered Rolls Adjustment
Powered Back Up Flights Adjustment
Variable Speed Drive with Gear Box

Edge Trimmer
Adjustable Edge Width
Scrap Chopper
Pit Cross Over Driven Conveyor

Mechanical Shear
Pneumatic Clutch and Brake
AC Motor Drive

Recoiler
Powered Over-Arm Separator
Powered Drum
Exit L-Type Floor Standing Coil Car
Driven Paper Re-Winder

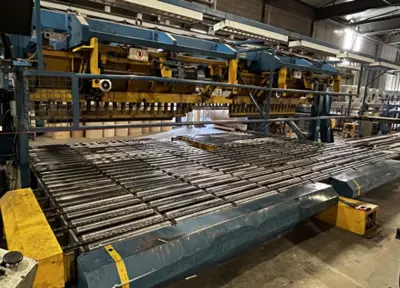

Sheet Stacker
Drop Type Stacking Design
Driven Stacker Conveyor
Side Discharge End Conveyors
Exit Chain Conveyor

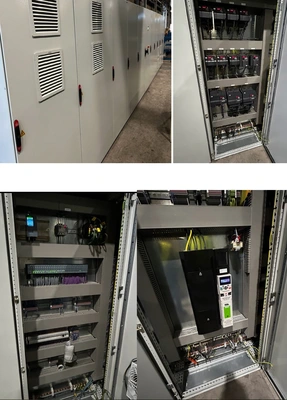

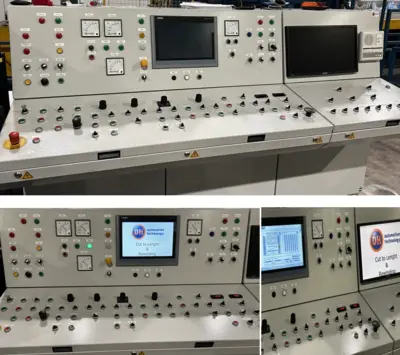

Electrics, Hydraulics, Updated Controls & PLC
